Designed for 40 foot containers set 10m apart our ShelterPro SP1040 High Side container shelter offers 122m² of covered protection. Our high side design creates extra height at the container sides to allow for taller machinery or vehicle access and storage. ShelterPro SP1040HS frame has 7 arches, and 5 purlins made of super strong, hot dipped galvanised, rolled Q235 structural steel. We match these frames with our hard-wearing, UV stabilised, waterproof, fire retardant 610gsm PVC covers.

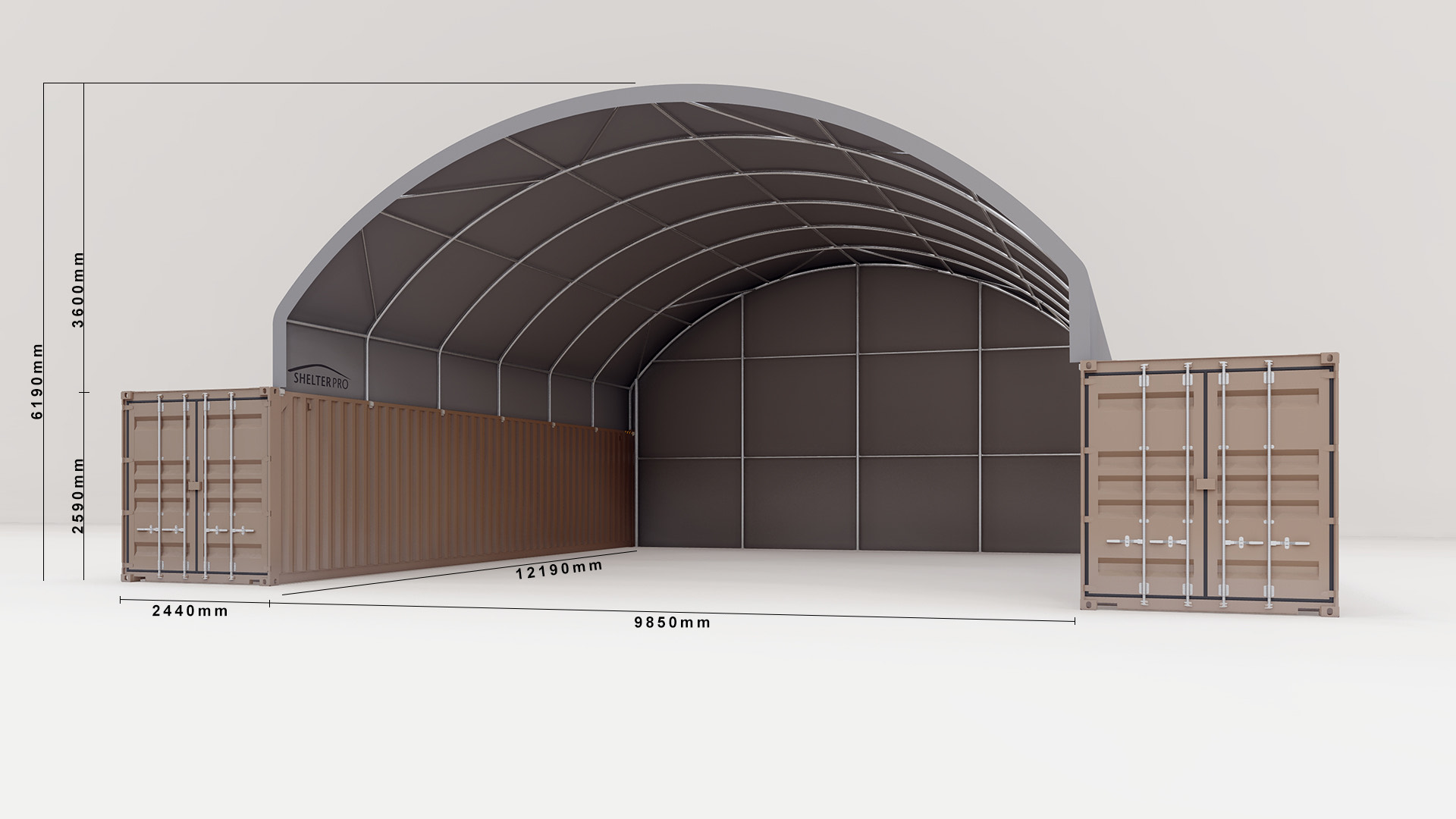

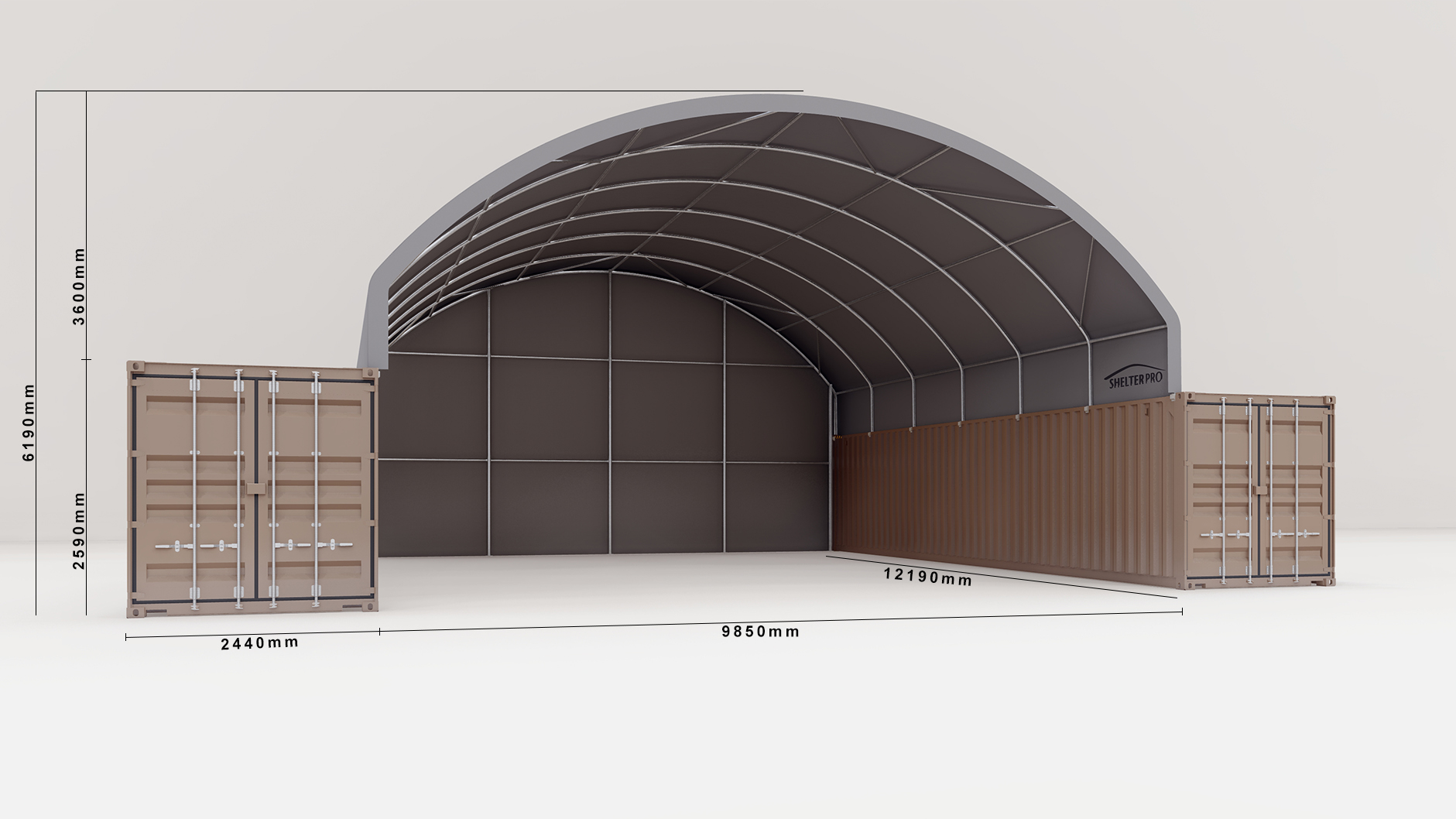

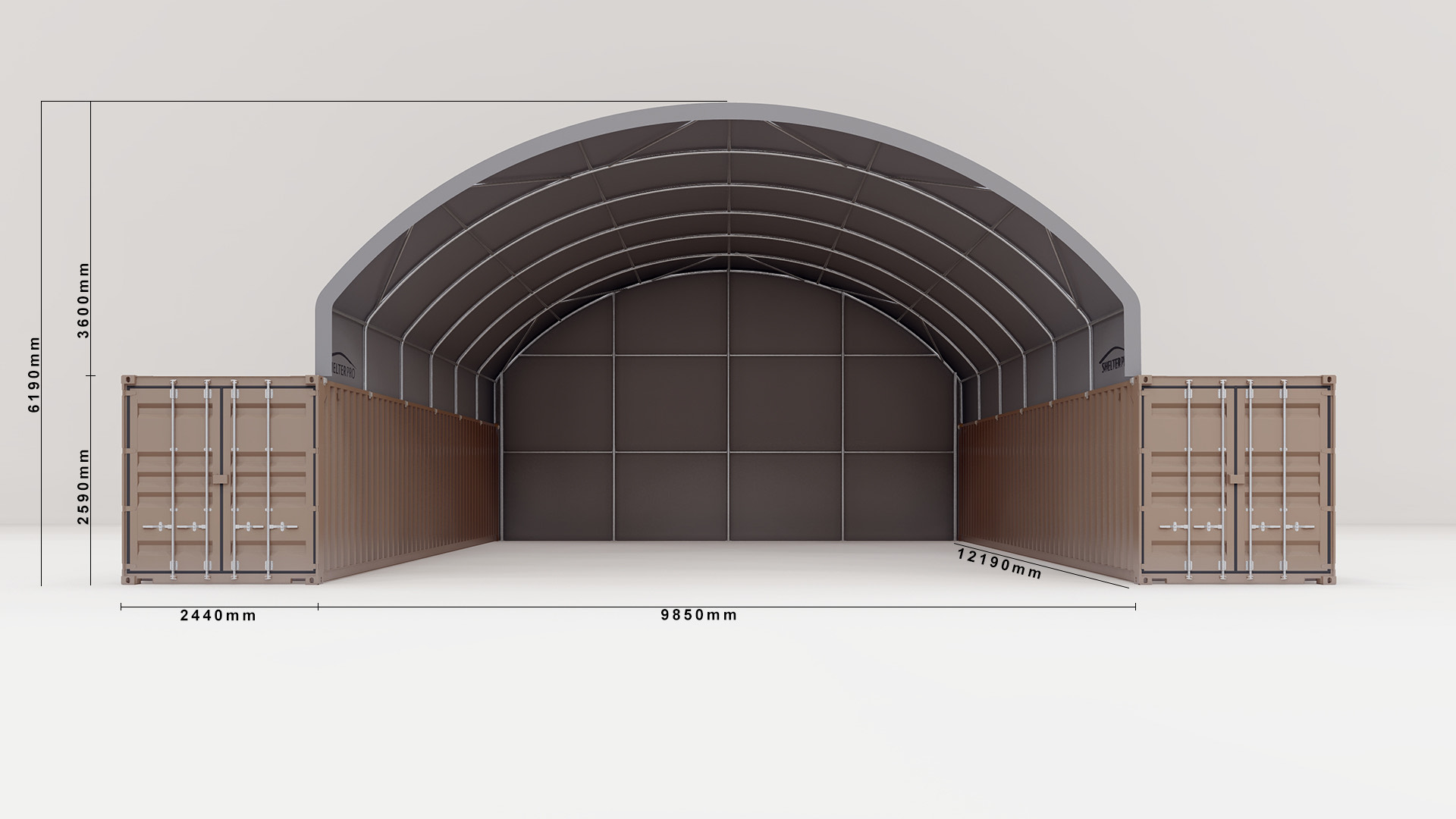

The SP1020-HS shelter has an arch height of 3.6m from container tops or mounting point to apex. This makes for a total height of 6.19m on GP containers or 6.49m on HC containers.

All ShelterPro container shelters can be mounted to a variety of options including concrete blocks, walls and posts/poles.

• Dimensions: 10.0m W x 12.2m D x 3.6m H
• Floor Area: 122m2
• Number of Arches: 7
• Number of Purlins: 5
• Packaged Weight: 1090kg
• Packaged Dimensions : 2.92m x 1.1m x 0.95m
• Frame: Hot dip galvanised, structural steel
• Cover: 610gsm PVC, UV stabilised, waterproof & fire retardant

SHELTER FEATURES

• Hot dipped galvanised structural steel frame
• UV stabilised, fire retardant, 610gsm PVC cover
• Waterproof PVC cover

Shipped from our centrally located warehouse, we have shipping solutions available nationwide. Free pickup is available from our Tauranga warehouse by arrangement. All ShelterPro shipping container shelters are shipped in safe, sturdy shipping crates to protect your new container shelter while in transport.

‍
