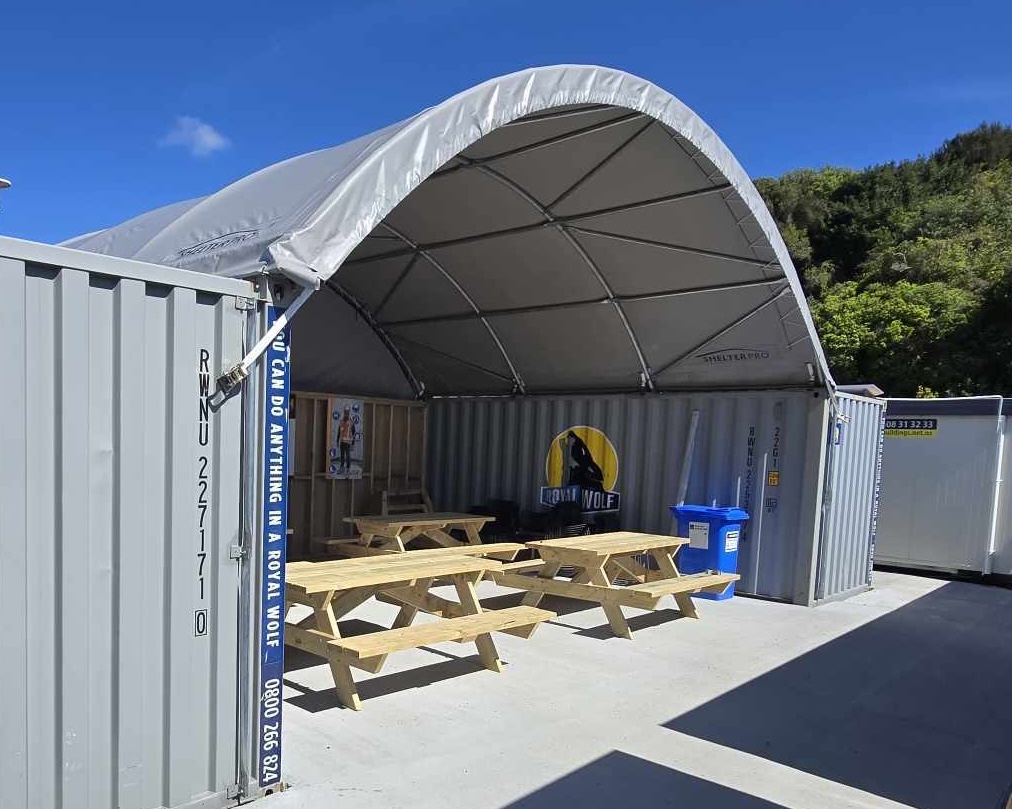

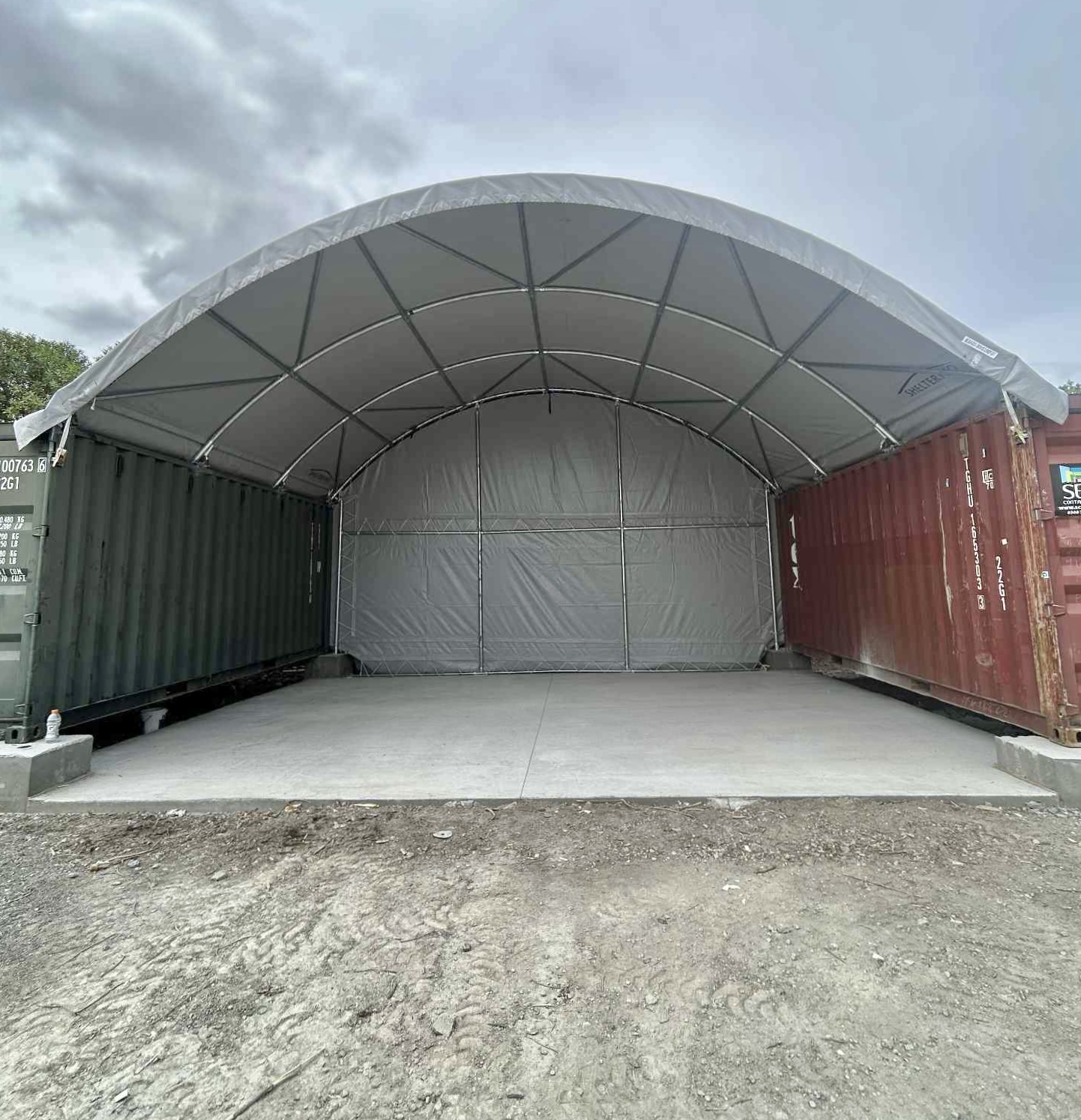

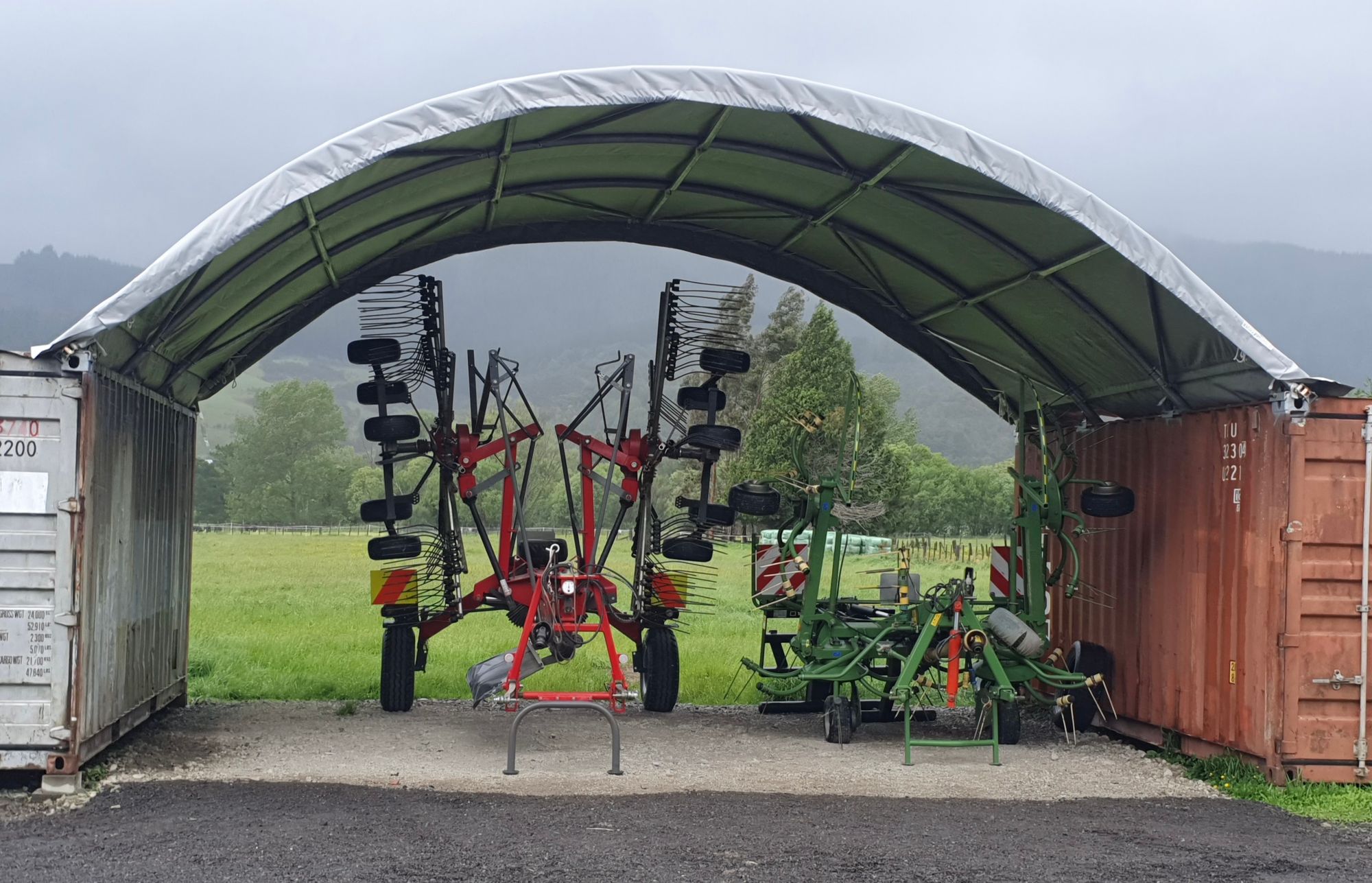

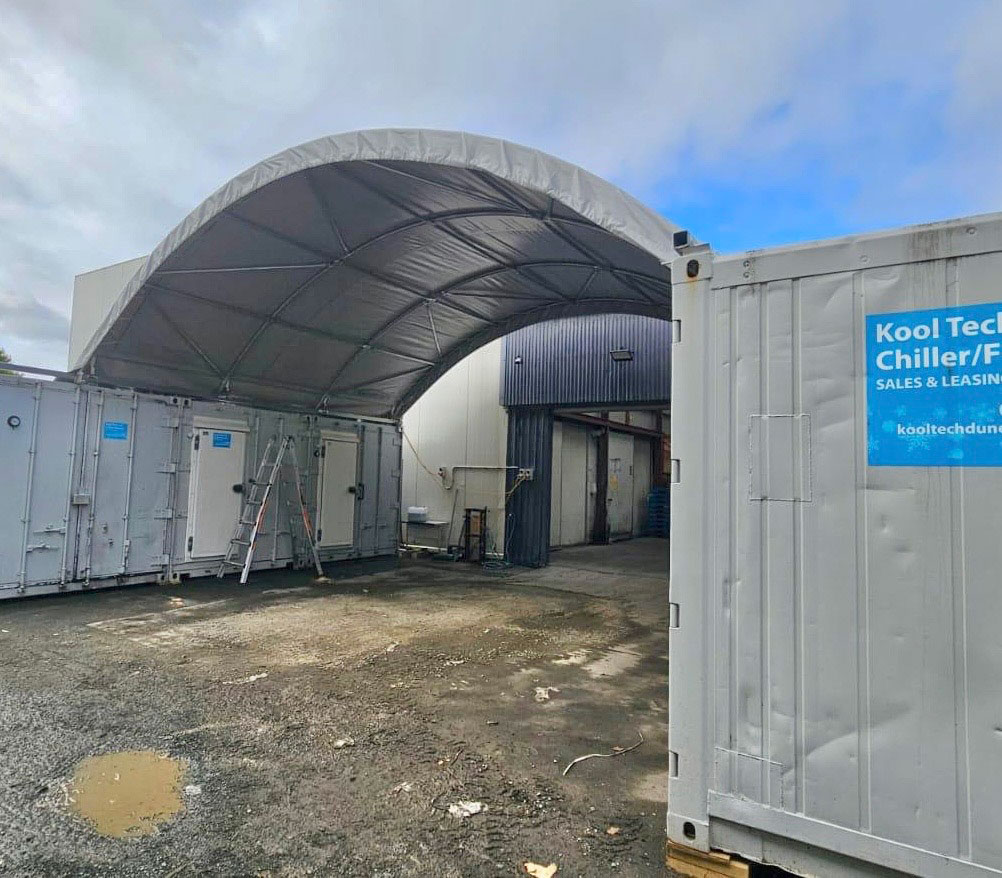

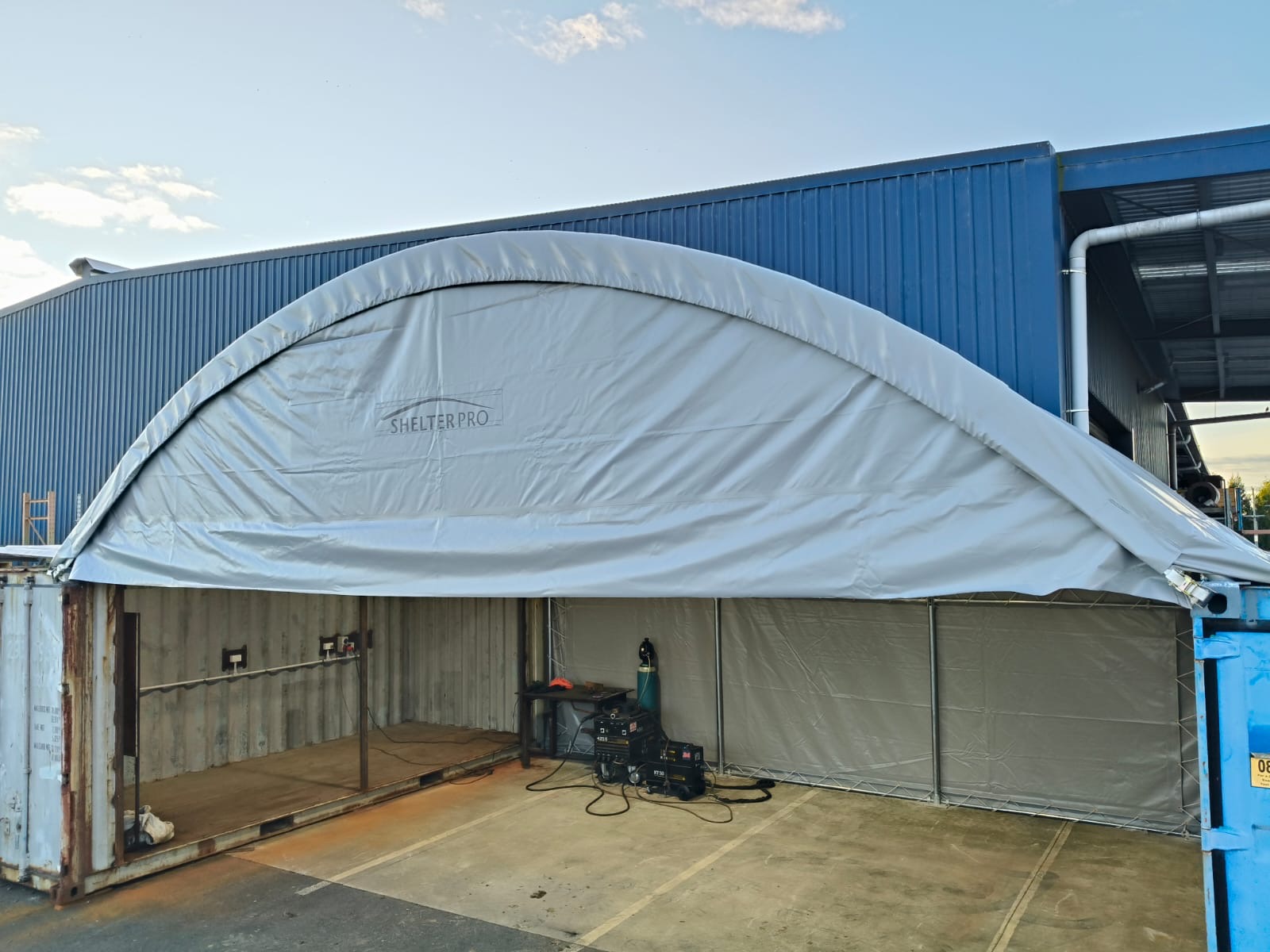

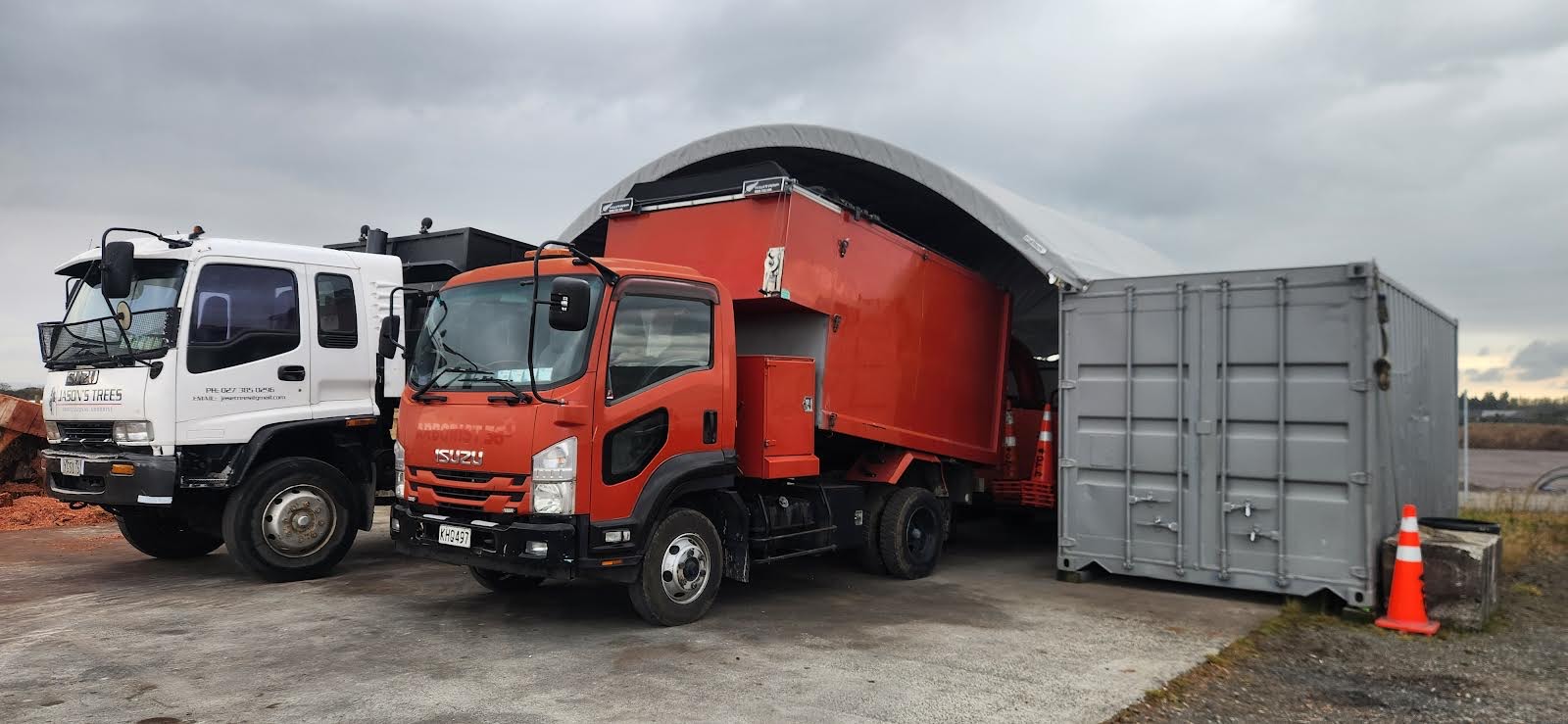

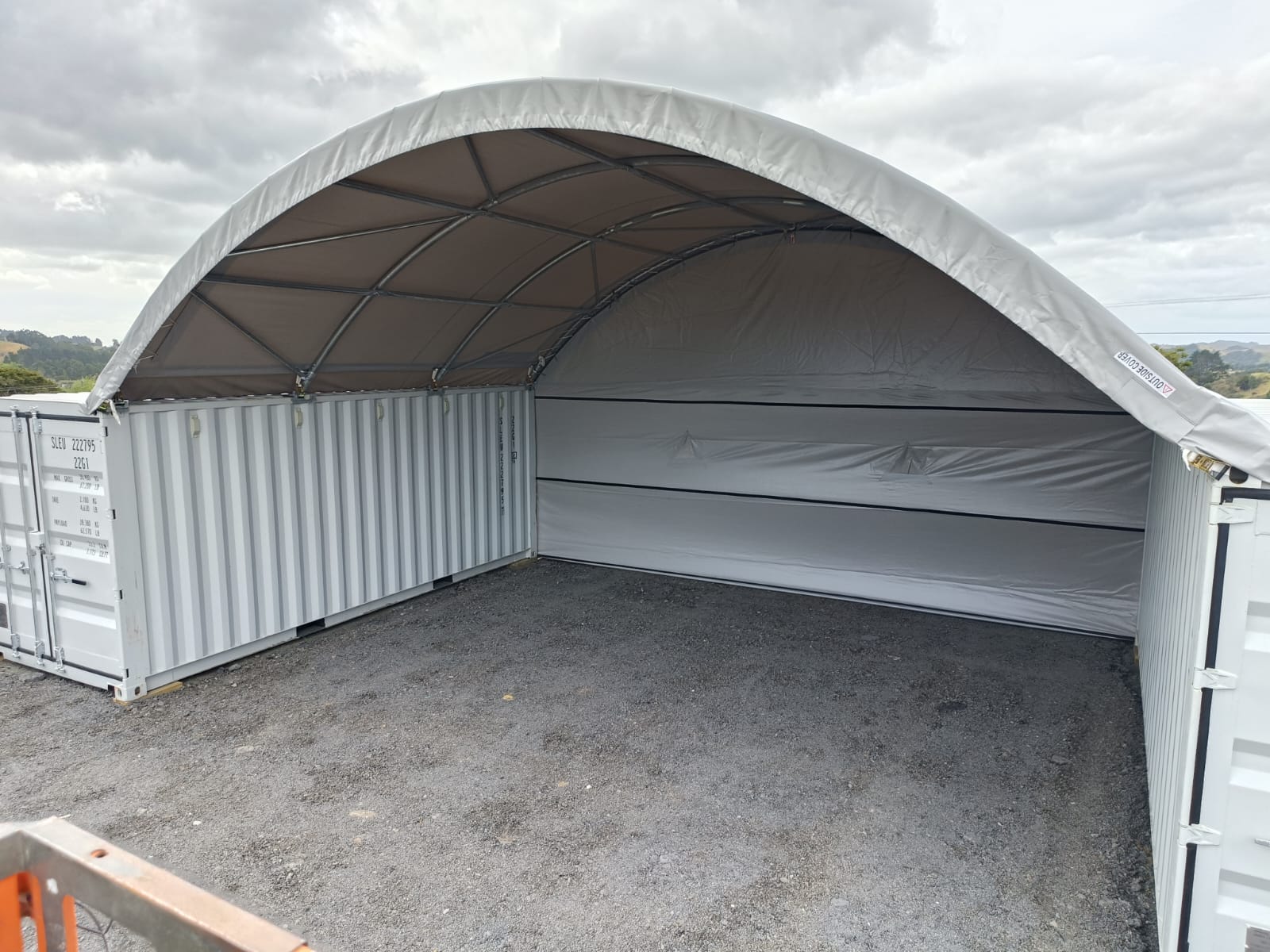

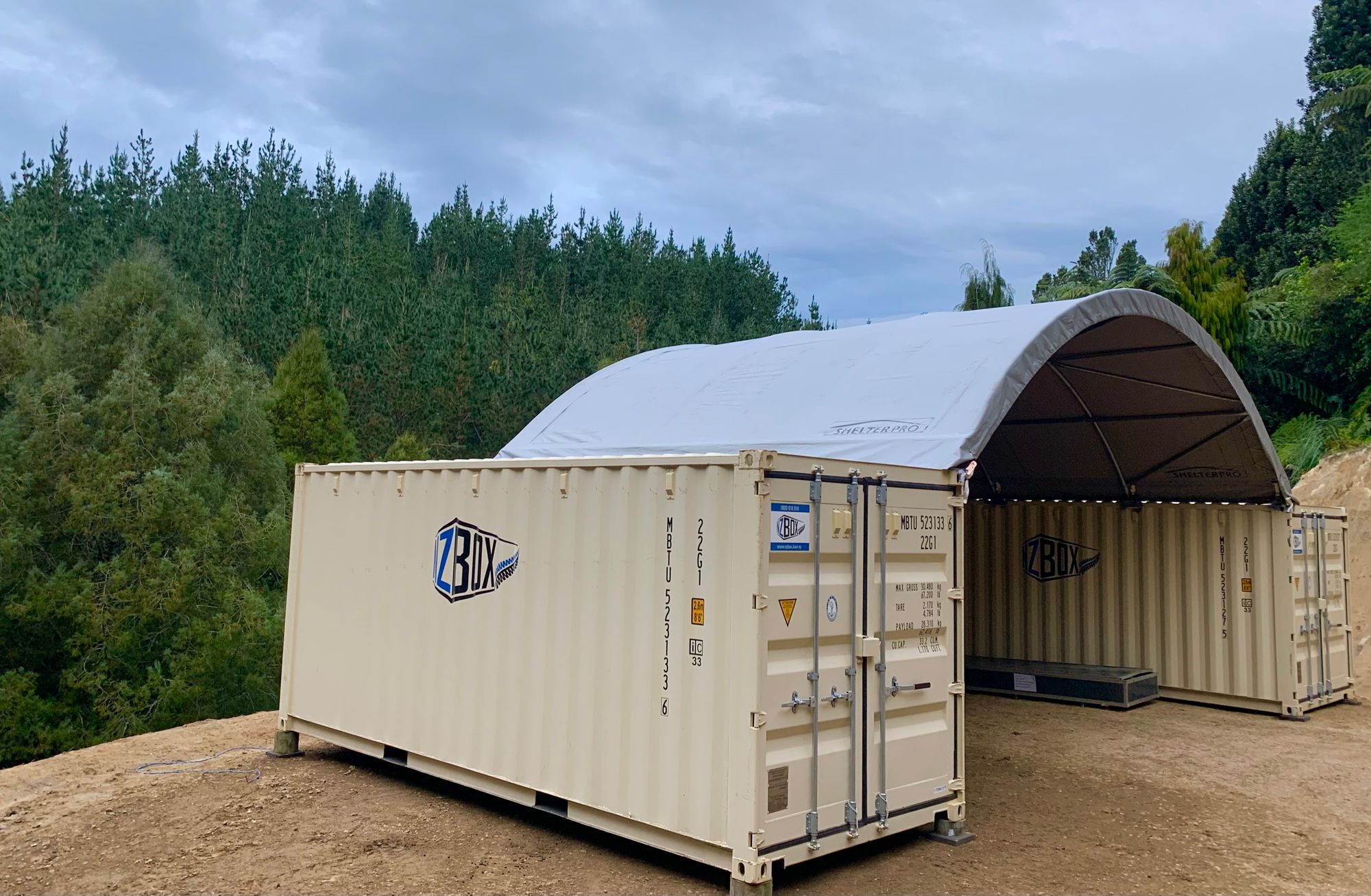

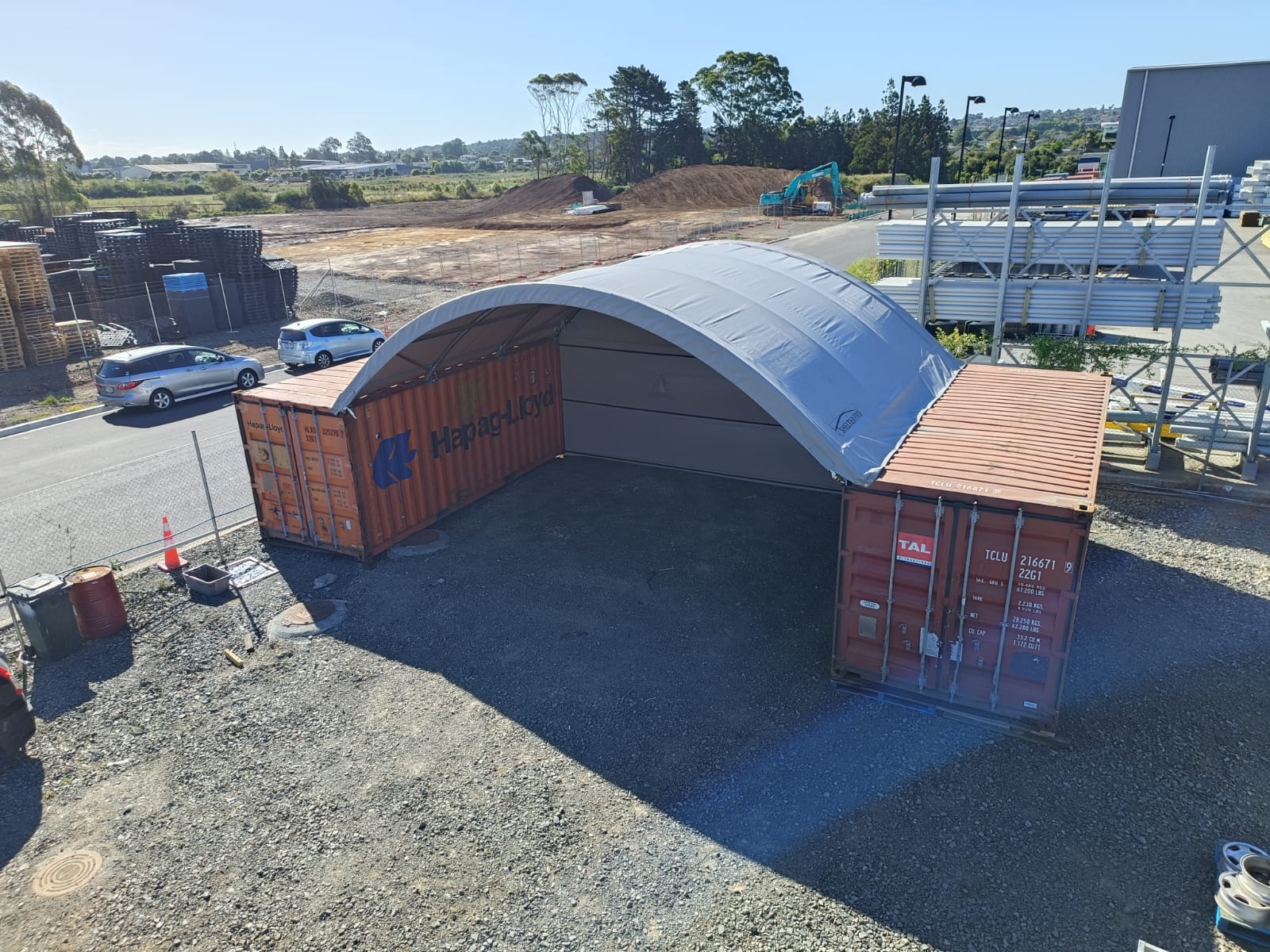

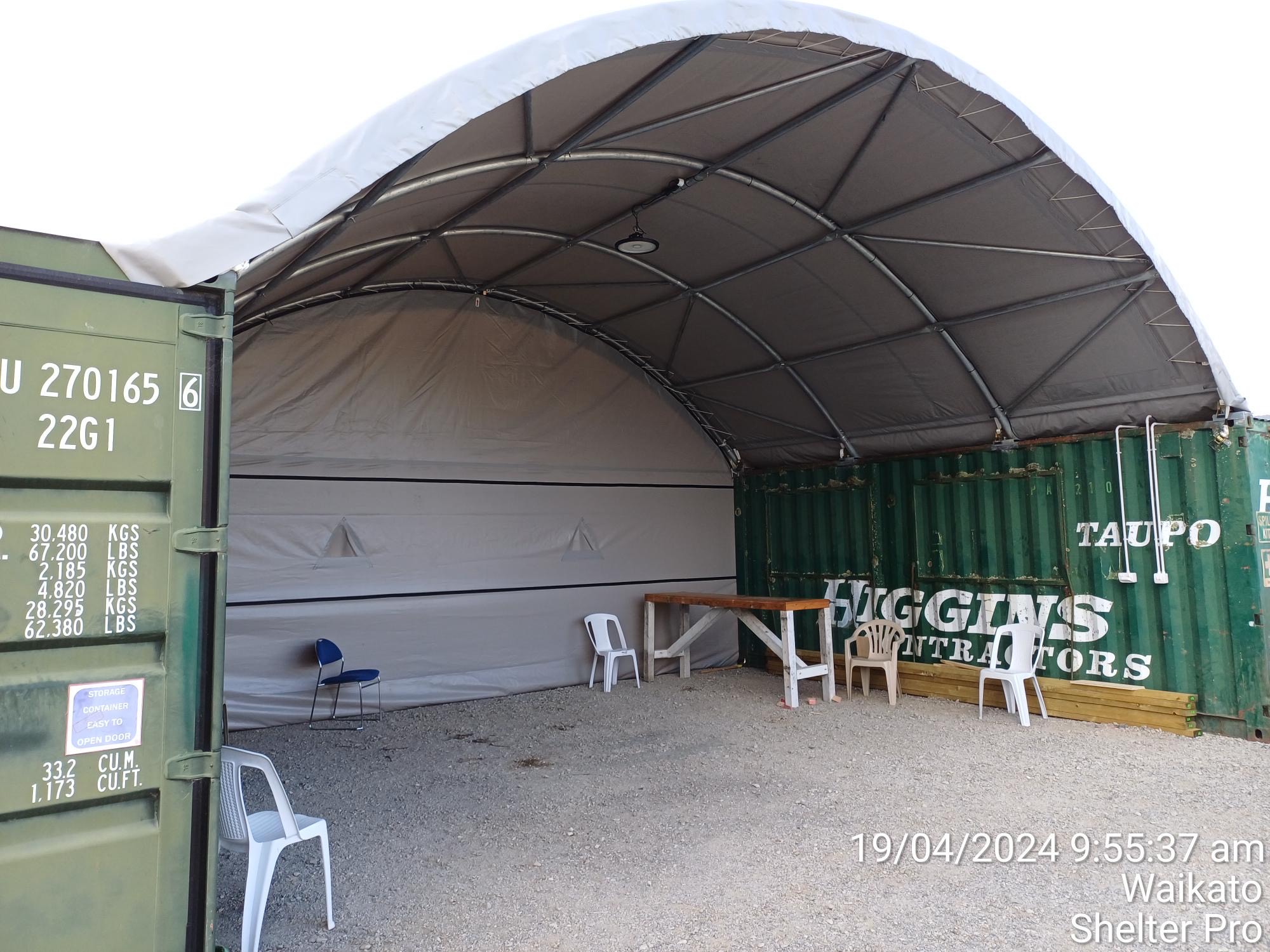

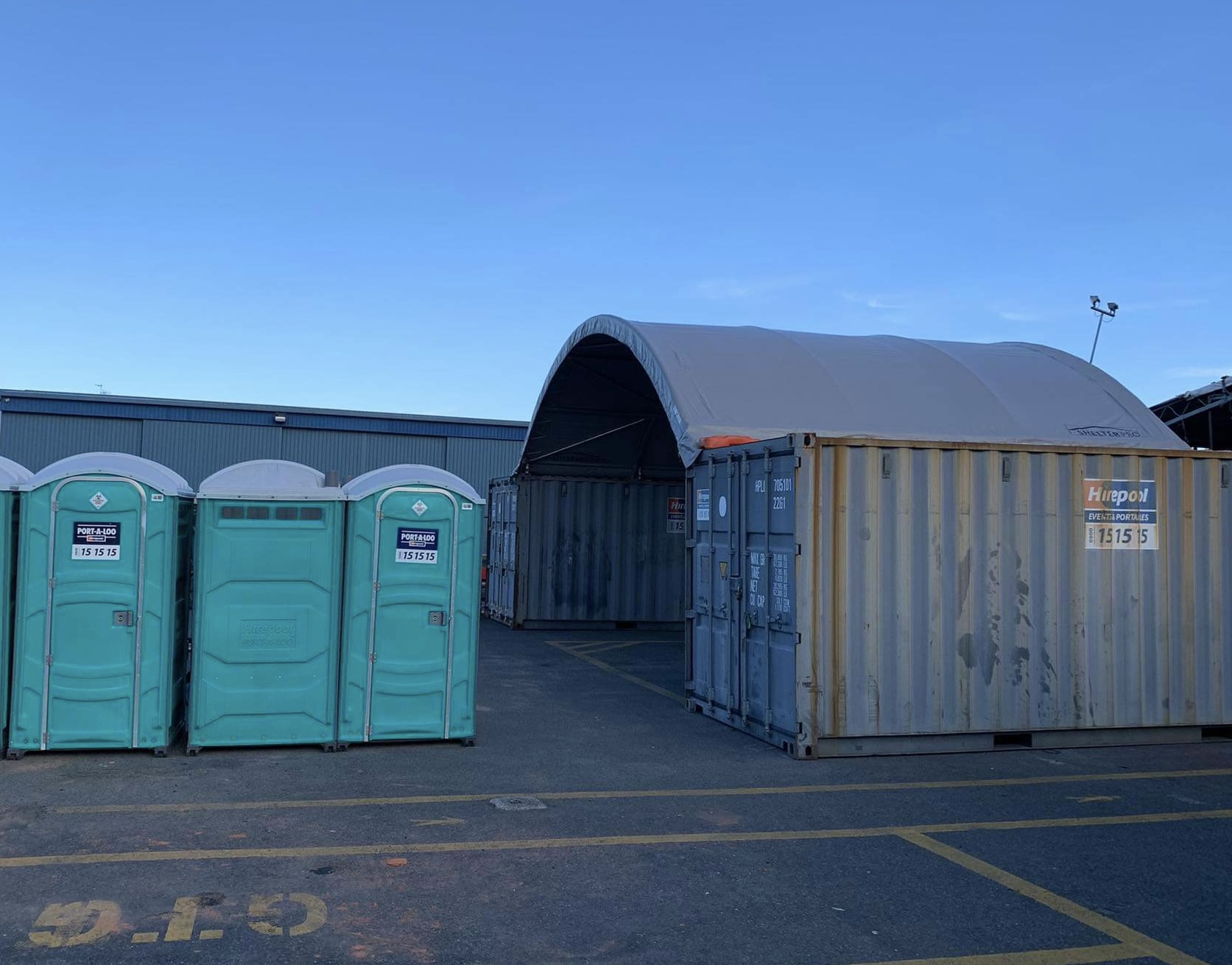

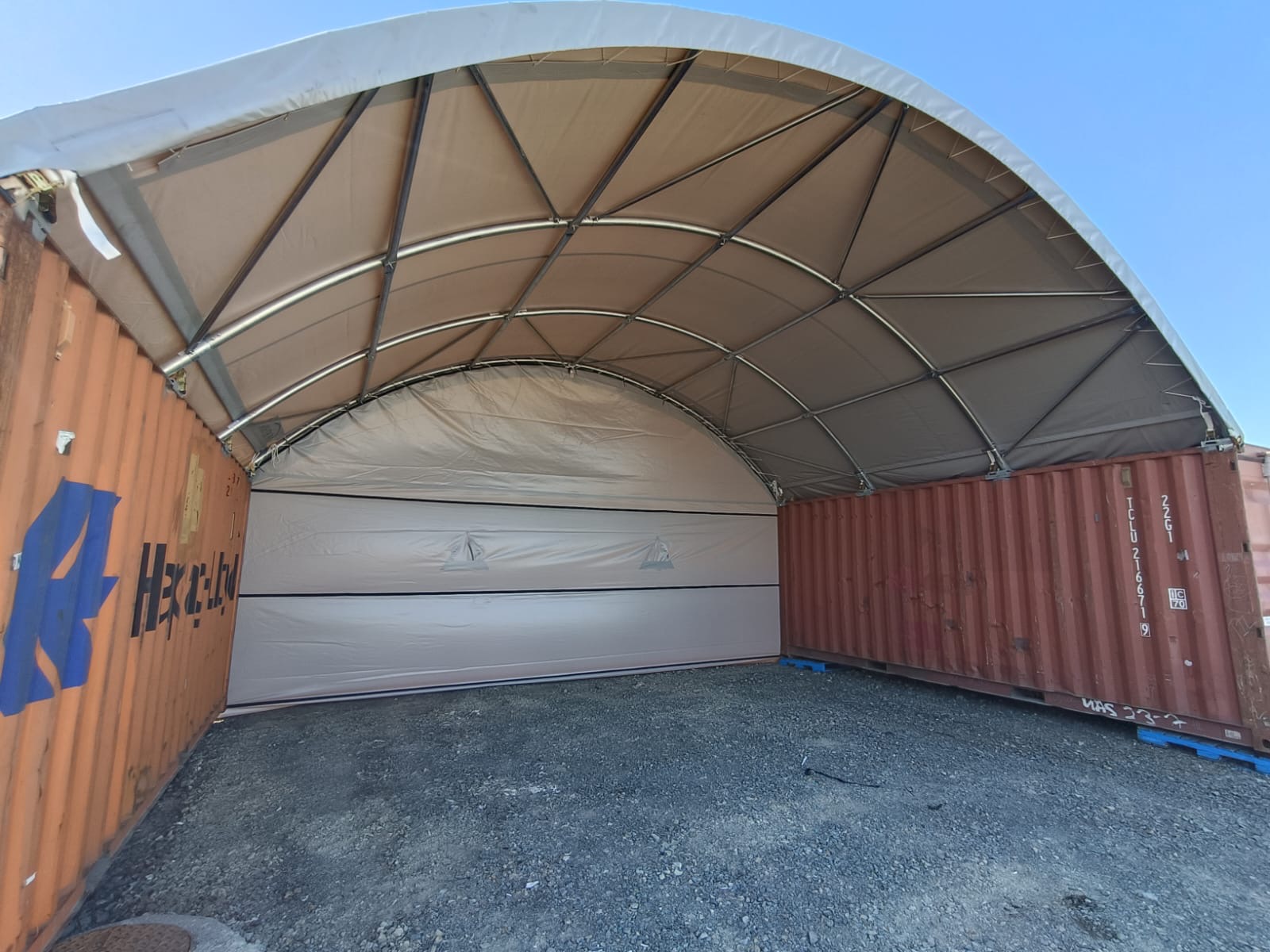

Designed for 20 foot containers set 7.70m apart our ShelterPro SP820 container shelter offers 46.58m² of covered protection. The ShelterPro SP820 frame has 4 arches, and 5 purlins made of super strong, hot dipped galvanised, rolled structural steel. We match these frames with our hard-wearing, UV stabilised, waterproof, fire retardant 610gsm PVC covers.

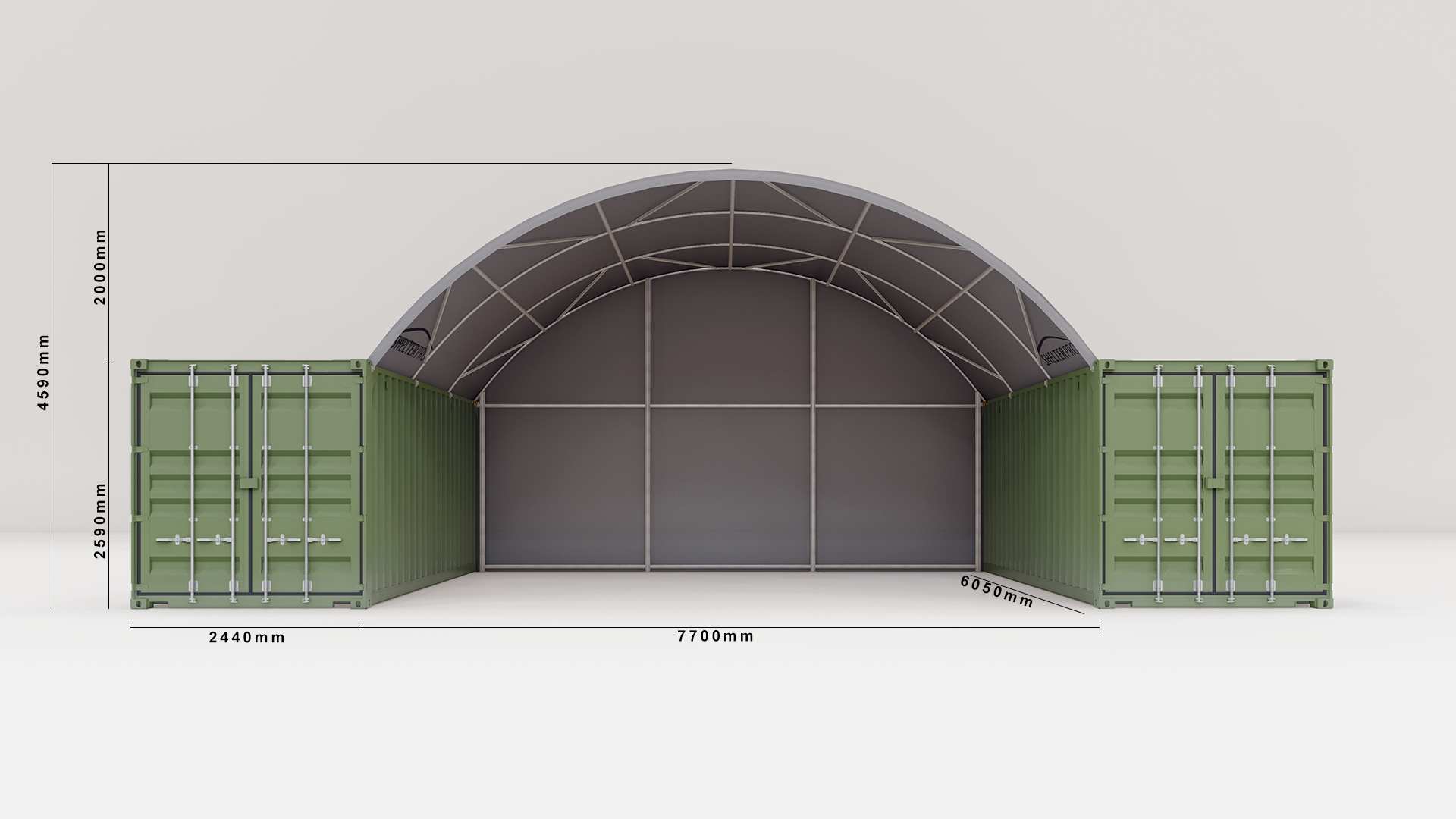

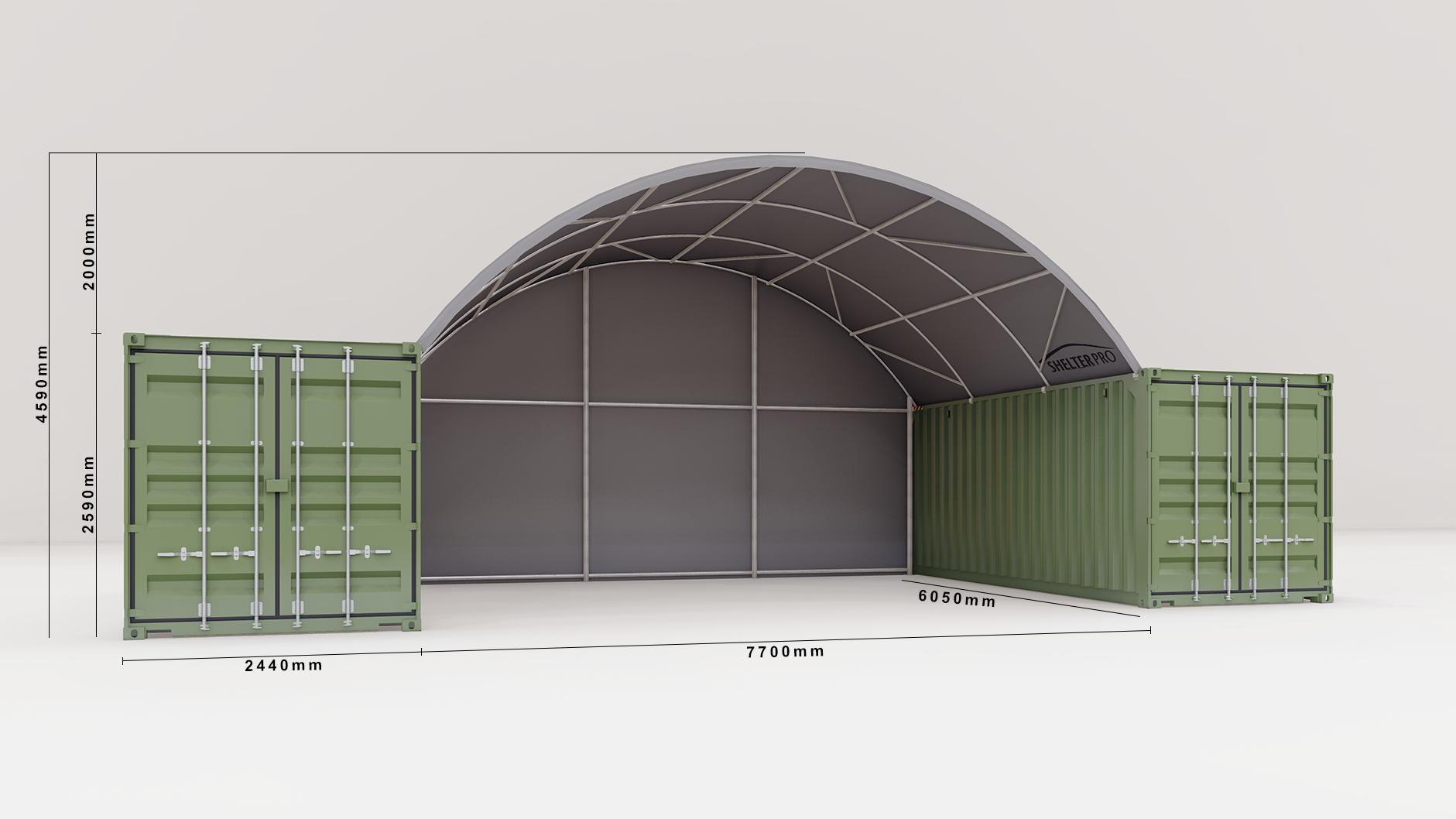

The SP820 Shelter has an arch height of 2m from container top or mounting point to apex. This makes for a total height of 4.59m on GP containers or 4.89m on HC containers.

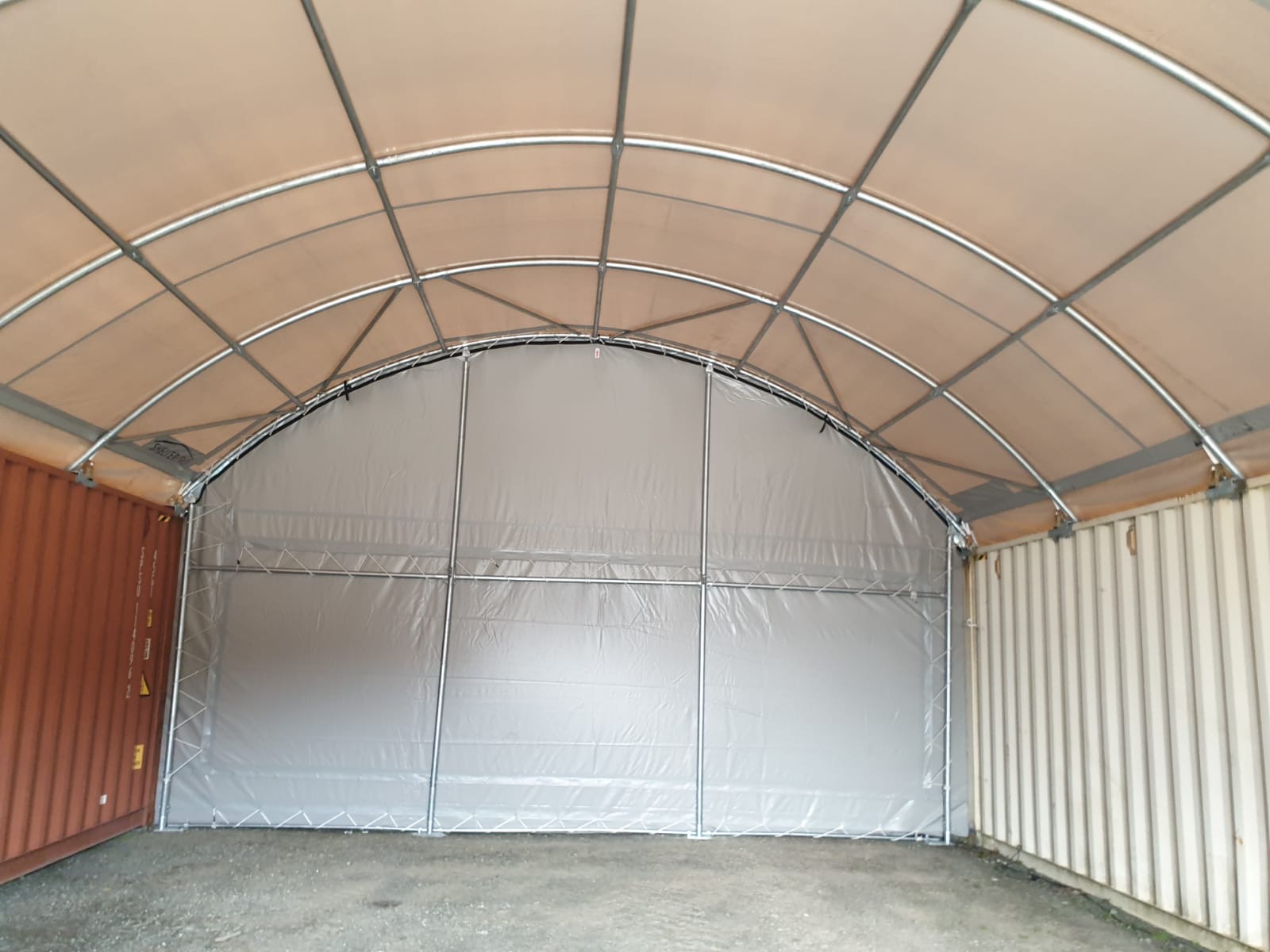

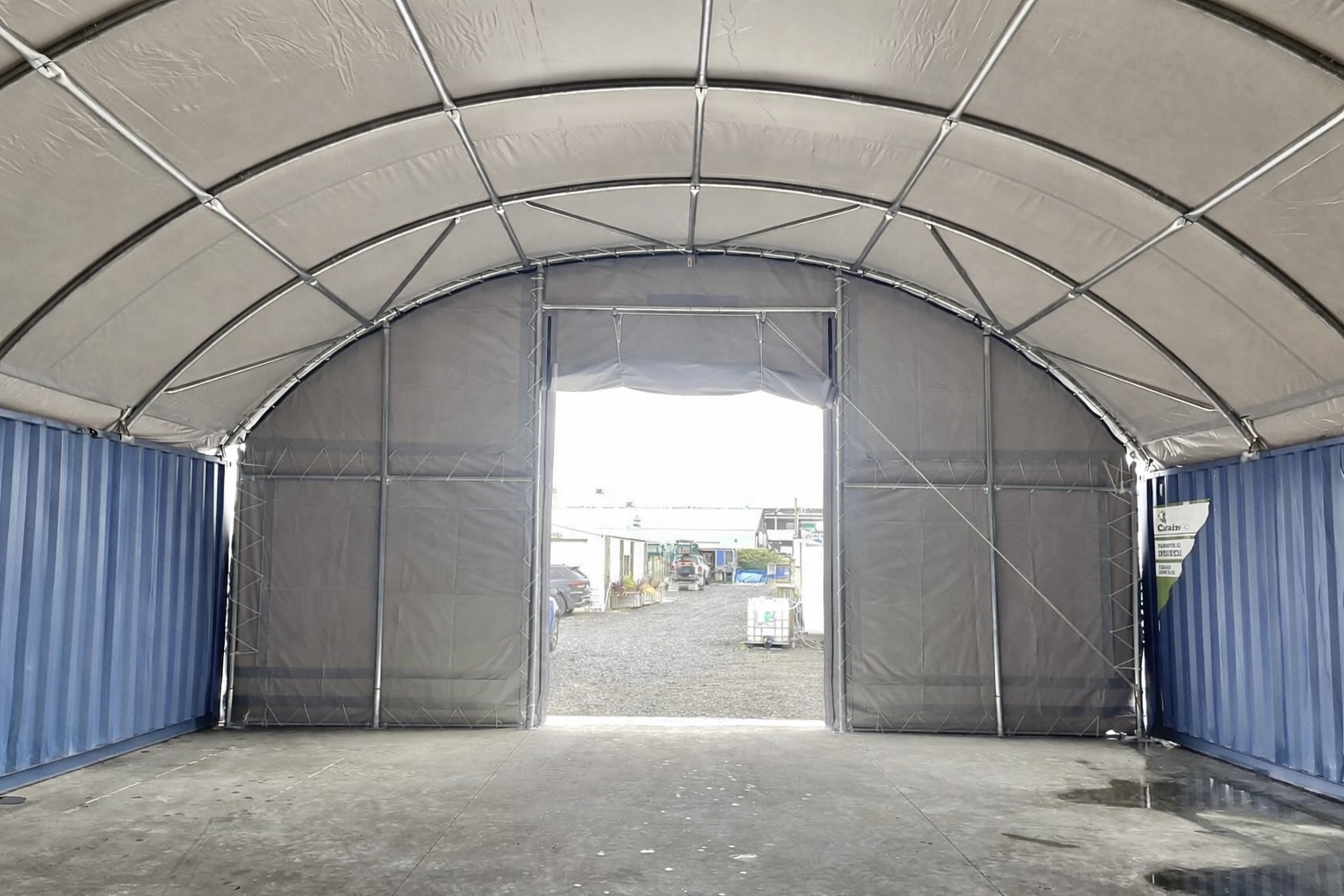

Note: All SP820 Container Shelters now include a steel framed end wall.

All ShelterPro container shelters can be mounted to a variety of options including concrete blocks, walls and posts/poles.

• Dimensions: 7.70m W x 6.0m D x 2.0m H
• Floor Area: 46.58m²
• Number of Arches: 4
• Number of Purlins: 5
• Packaged Weight: 468KG
• Packaged Dimensions : 2.92m x 1.1m x 0.45m
• Frame: Hot dip galvanised, Q235 structural steel

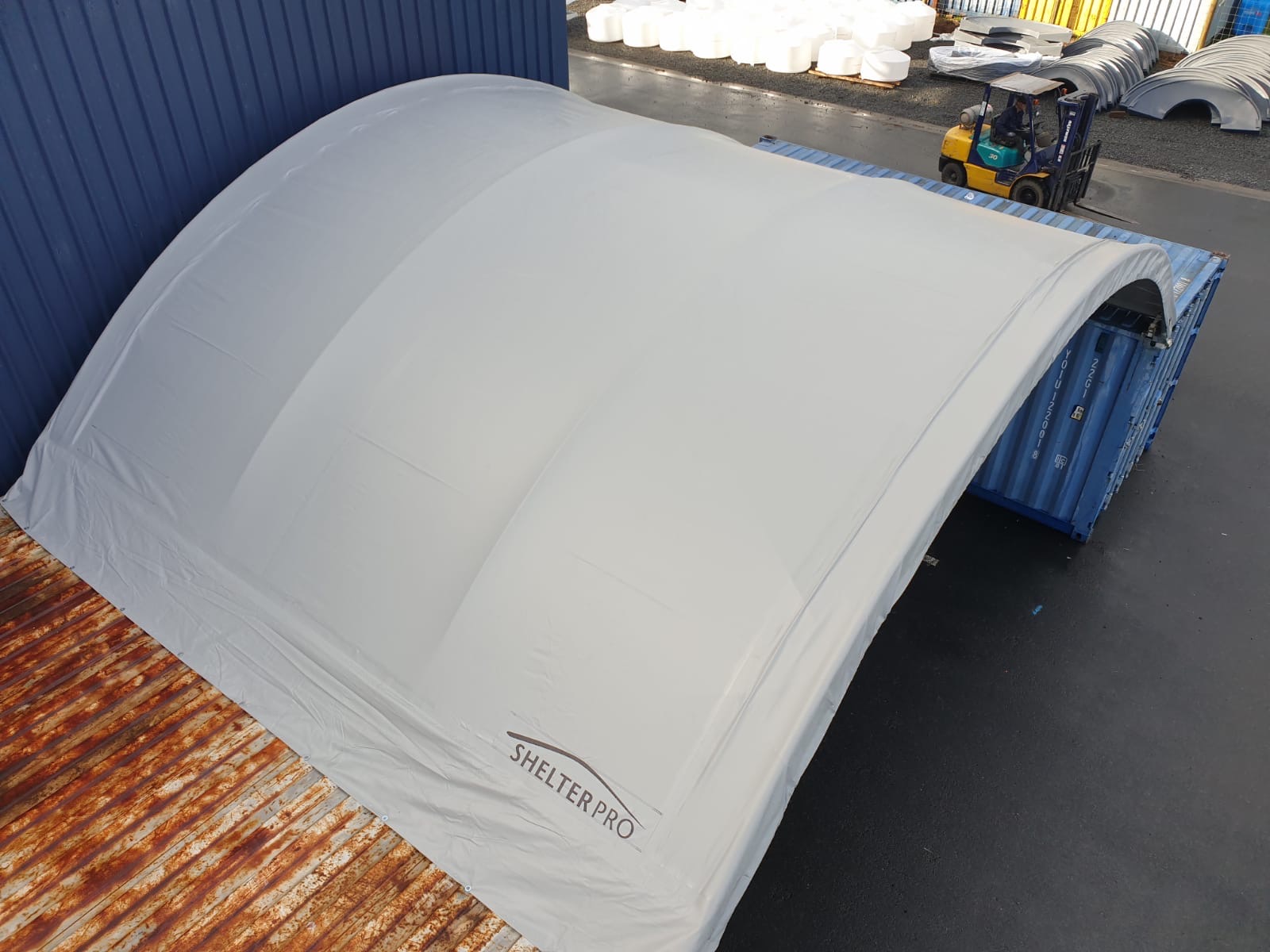

• Cover: 610gsm PVC, UV stabilised, waterproof & fire retardant

SHELTER FEATURES

• Hot dipped galvanised structural steel frame
• UV stabilised, fire retardant, 610gsm PVC cover
• Waterproof PVC cover
• Steel framed end wall

Shipped from our centrally located warehouse, we have shipping solutions available nationwide. Free pickup available from our Tauranga warehouse by arrangement. All ShelterPro container shelters are shipped in safe, sturdy shipping crates to protect your new container shelter while in transport.
