Designed for 40 foot containers set 13.91m apart our ShelterPro SP1440 high sided truss container shelter offers 169.7m² of covered protection. The ShelterPro SP1440 truss frame has 7 arches, and 9 purlins made of super strong, hot dipped galvanised, rolled structural steel. We match these frames with our hard-wearing, UV stabilised, waterproof, fire retardant 610gsm PVC covers.

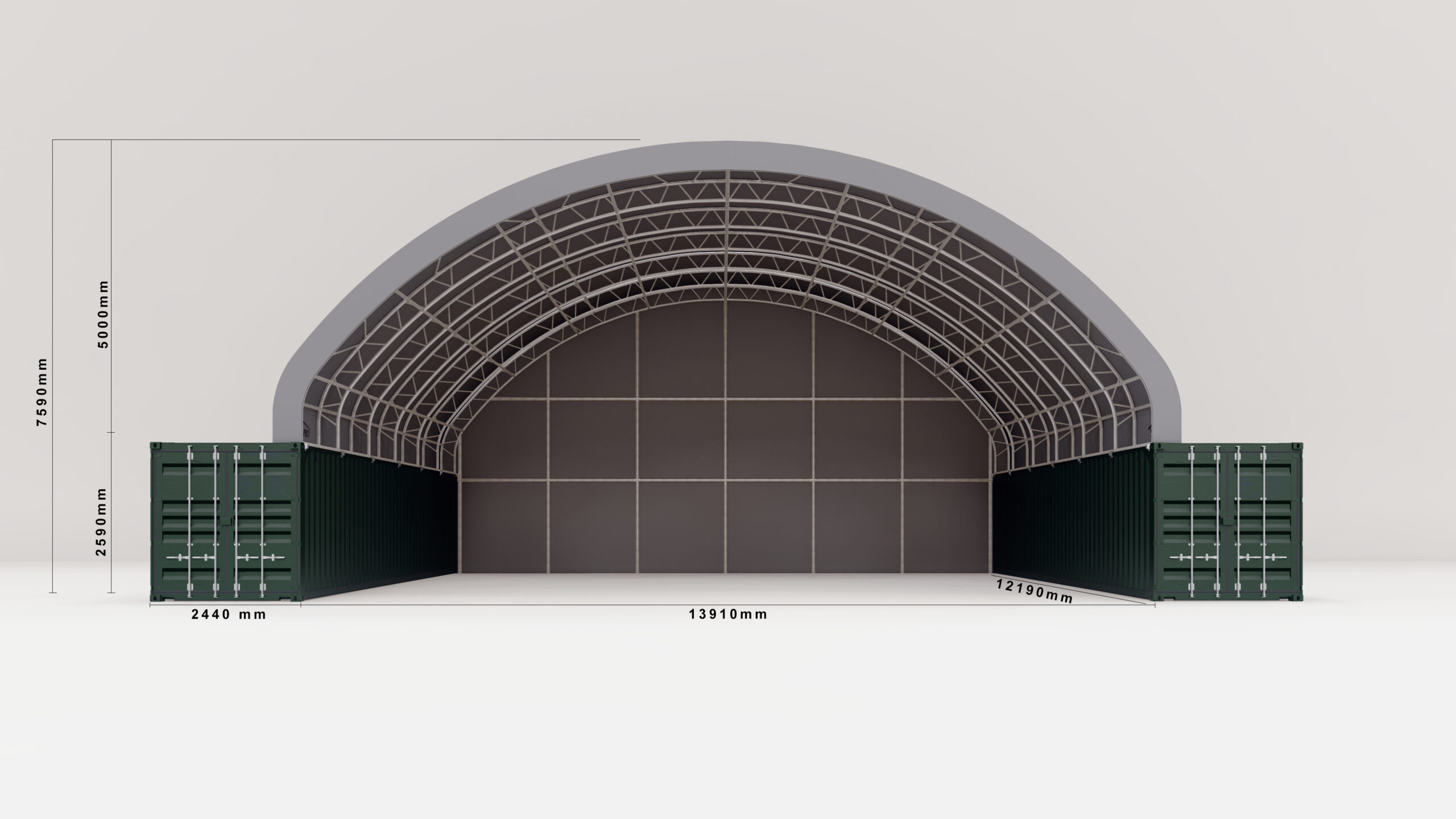

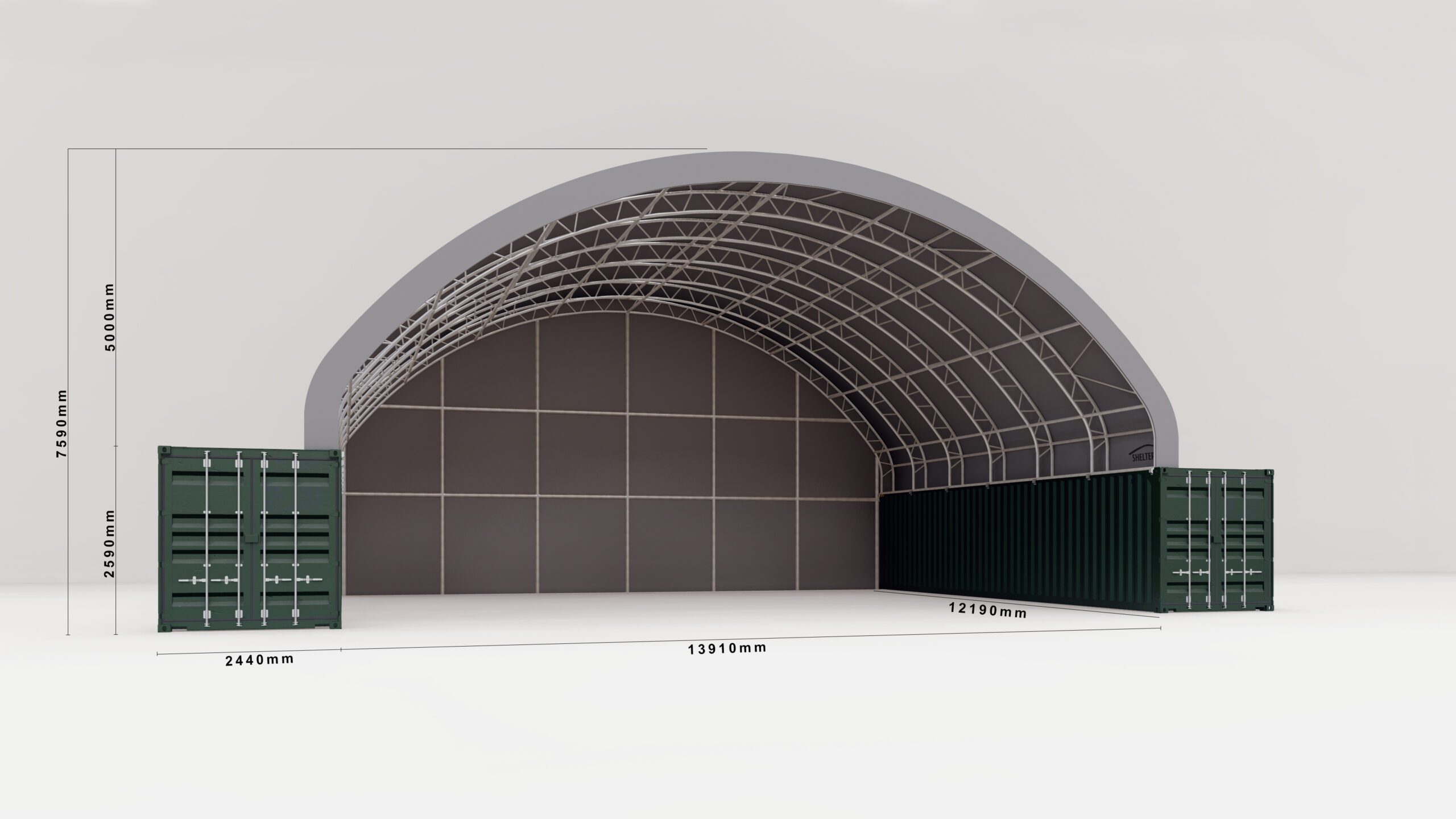

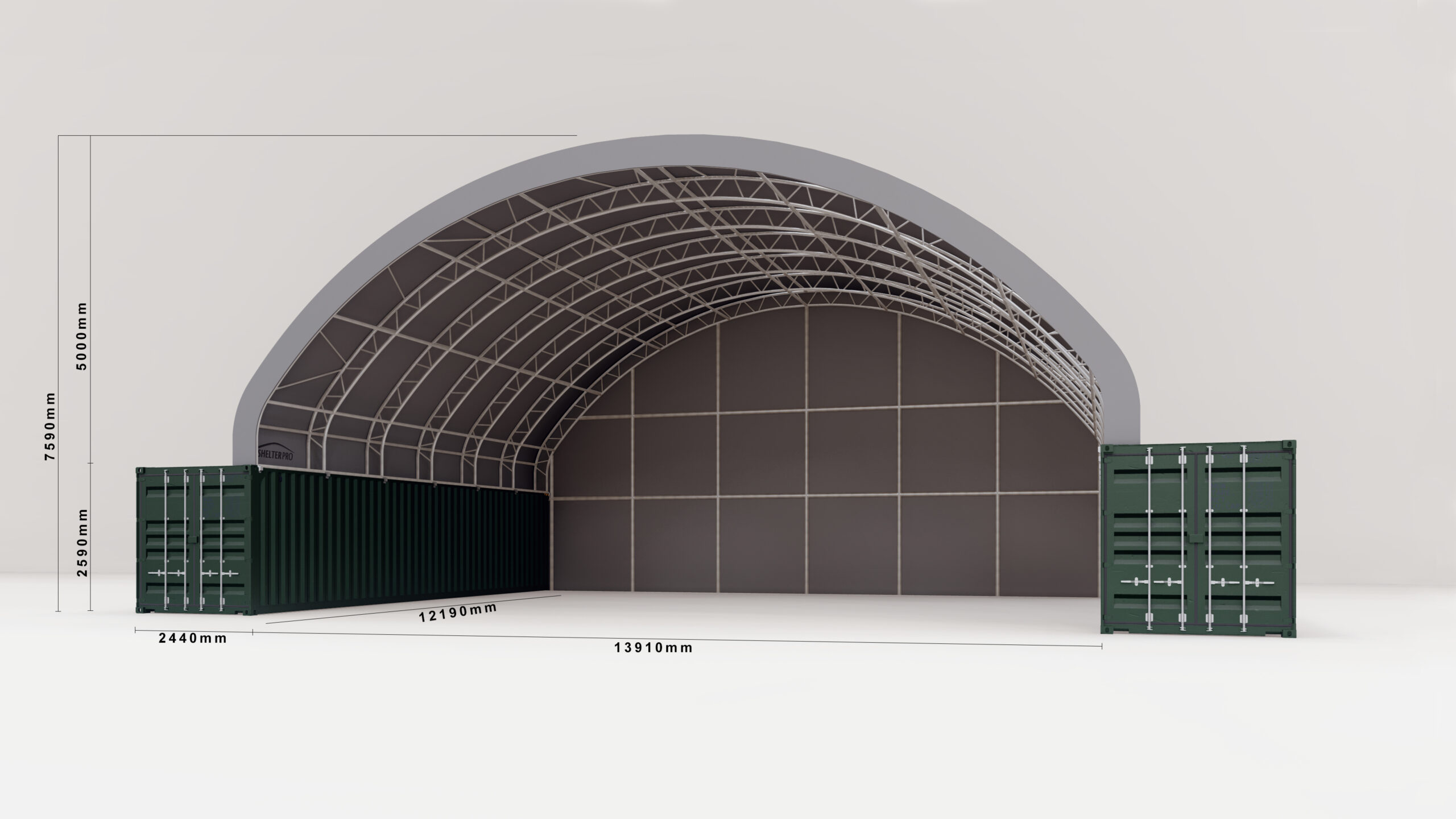

The SP1440 truss shelter has an arch height of 5m from container tops or mounting point to apex. This makes for a total height of 7.59m on GP containers or 7.89m on HC containers.

All ShelterPro container shelters can be mounted to a variety of options including concrete blocks, walls and posts/poles.

• Dimensions: 13.91m W x 12.2m D x 5.0m H
• Floor Area: 169.7m²
• Number of Arches: 7
• Number of Purlins: 5
• Packaged Weight: 2770kg
• Packaged Dimensions : 2.92m x 1.10m x 1.25m
• Frame: Hot dip galvanised, Q235 structural steel
• Cover: 610gsm PVC, UV stabilised, waterproof & fire retardant

SHELTER FEATURES

• Hot dipped galvanised structural steel frame
• UV stabilised, fire retardant, 610gsm PVC cover
• Waterproof PVC cover

Shipped from our centrally located warehouse, we have shipping solutions available nationwide. Free pickup available from our Tauranga warehouse by arrangement. All ShelterPro container shelters in nz are shipped in safe, sturdy shipping crates to protect your new container shelter while in transport.
