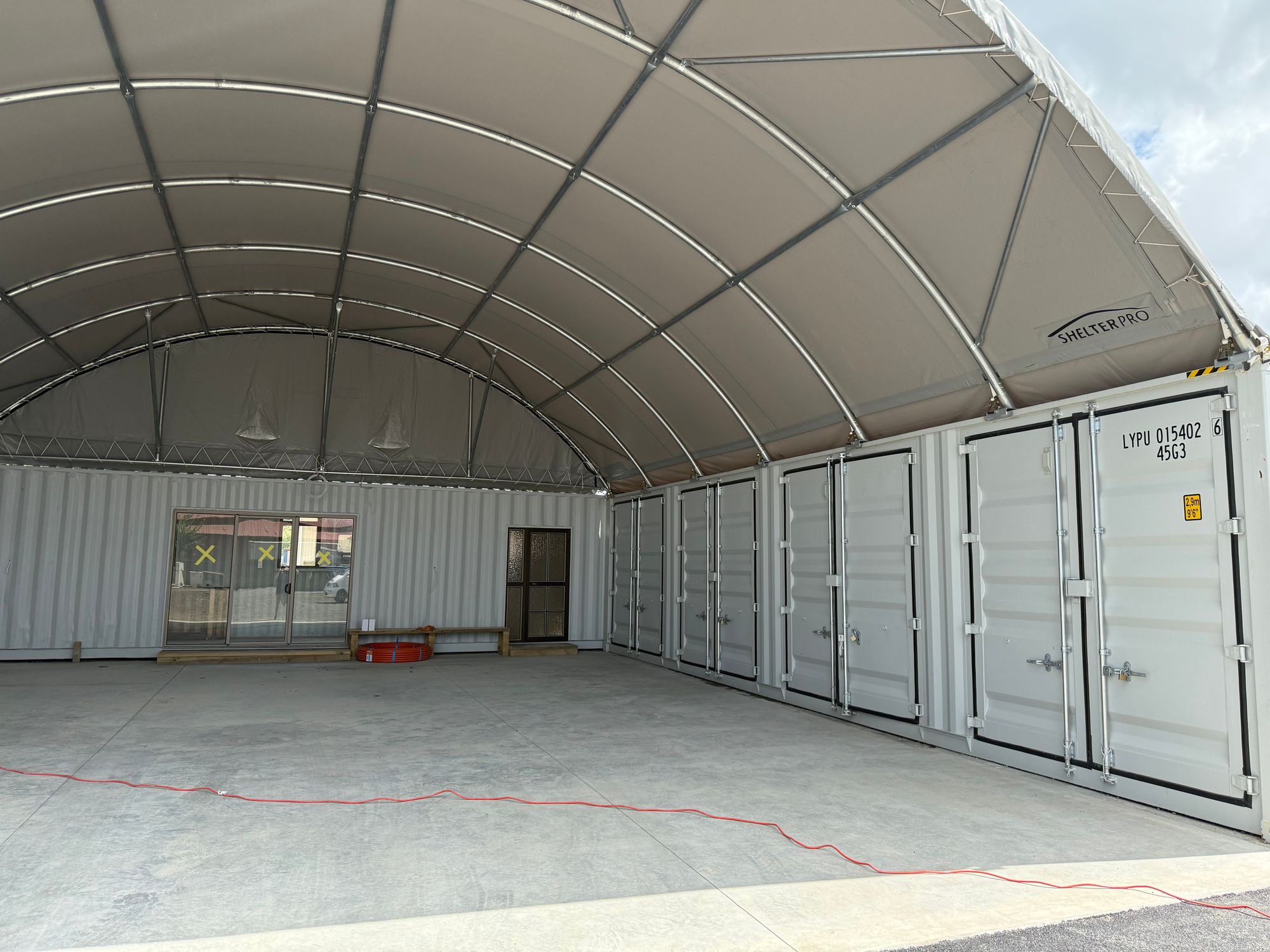

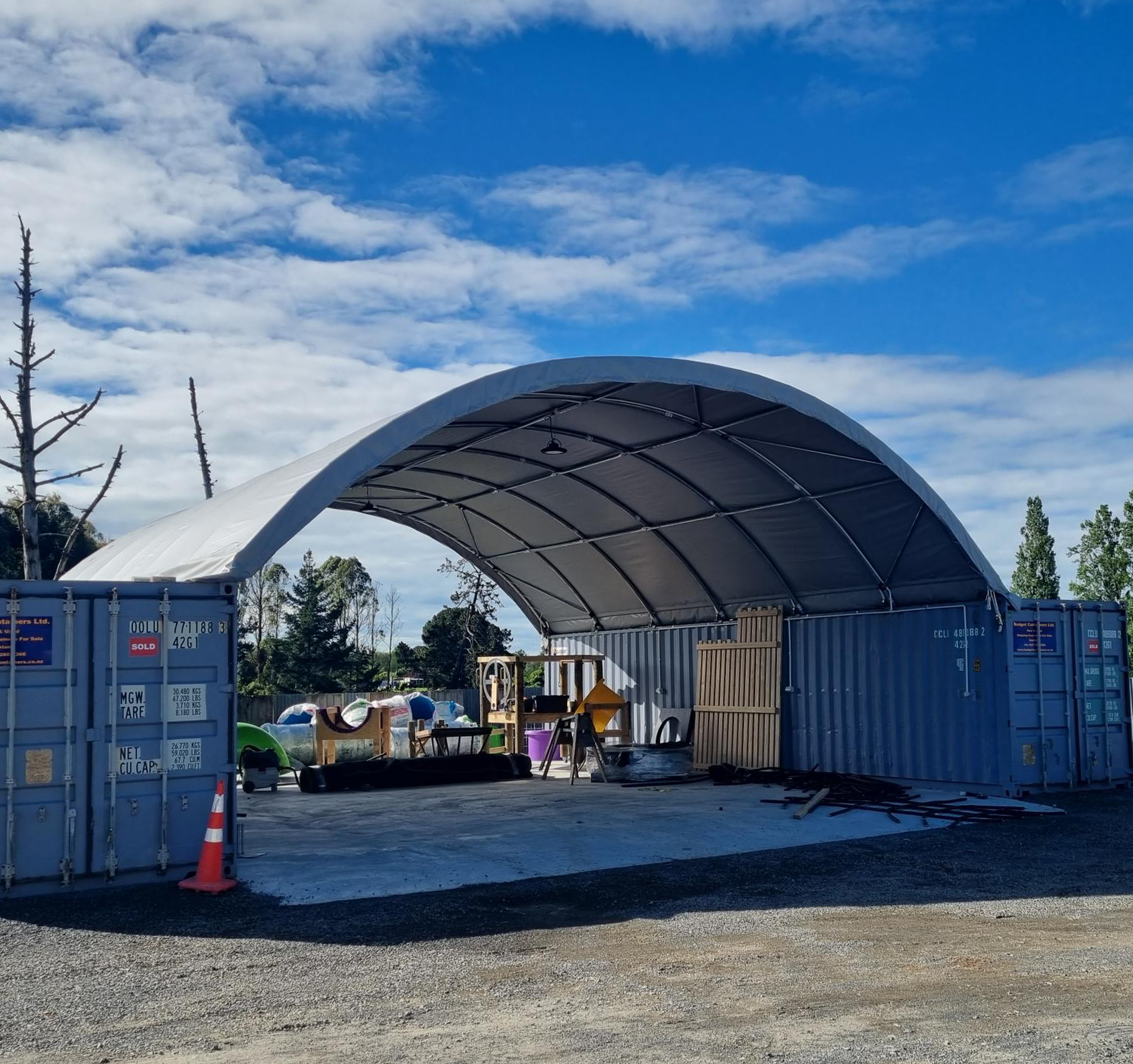

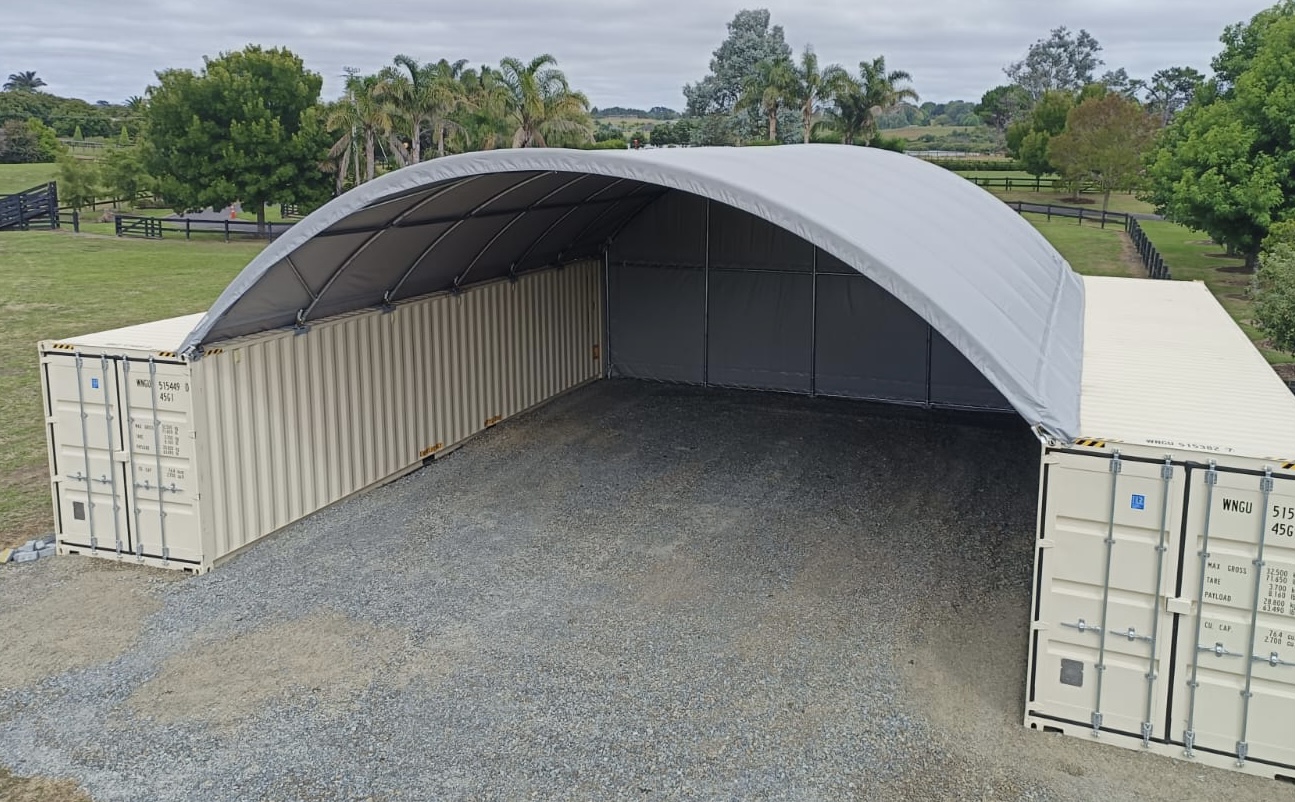

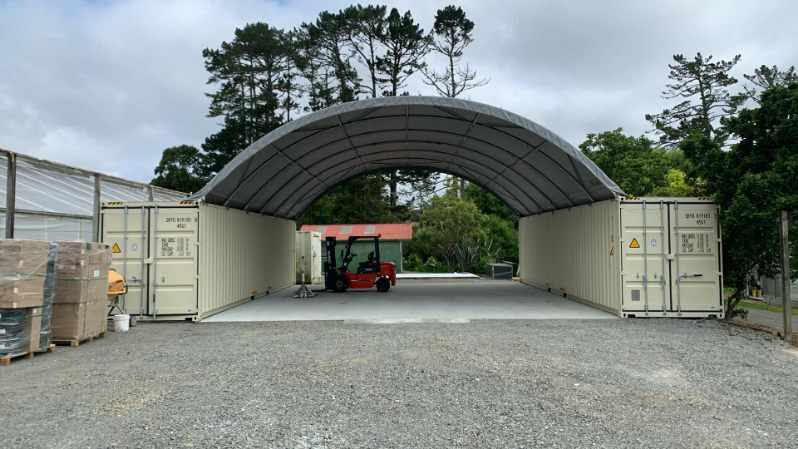

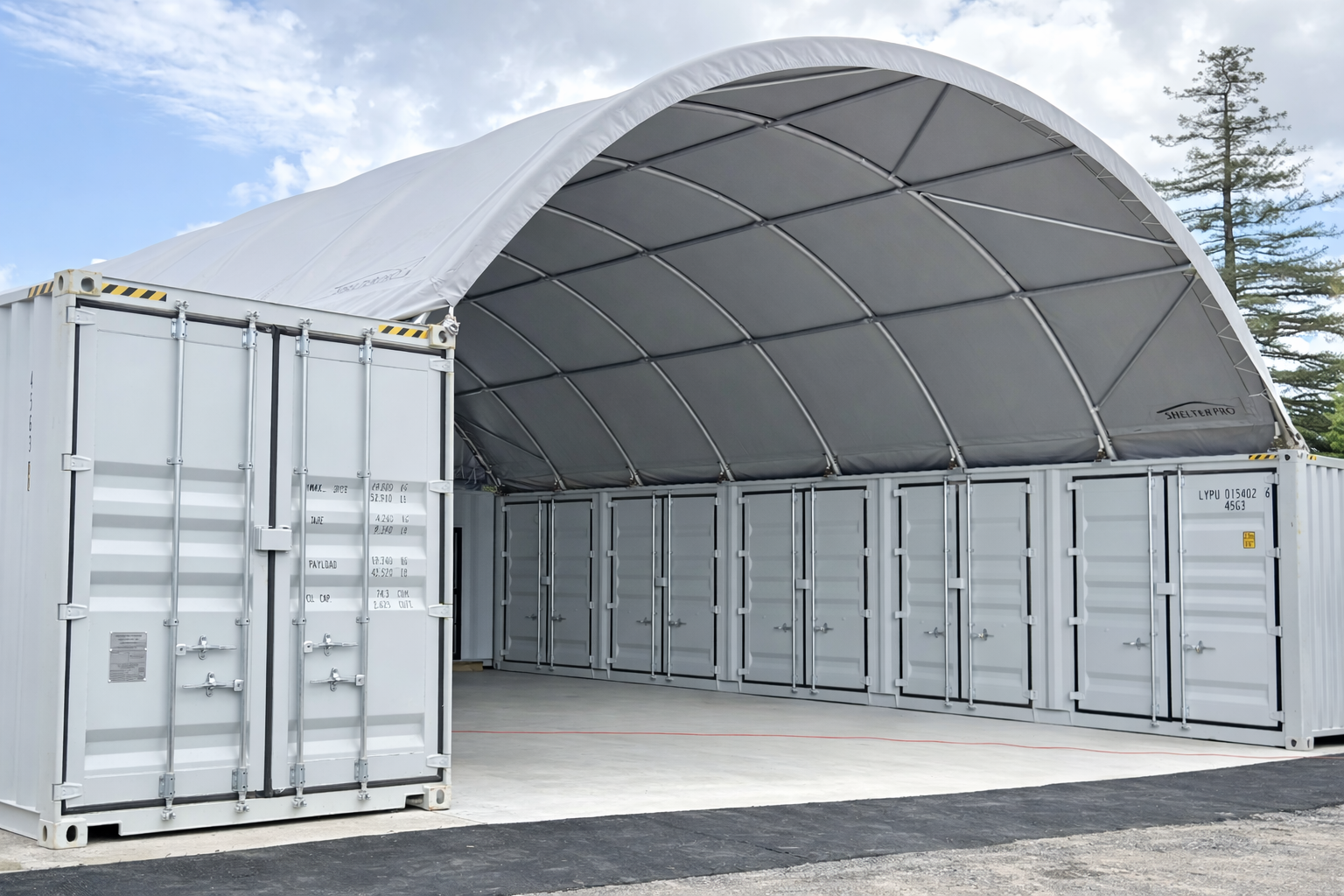

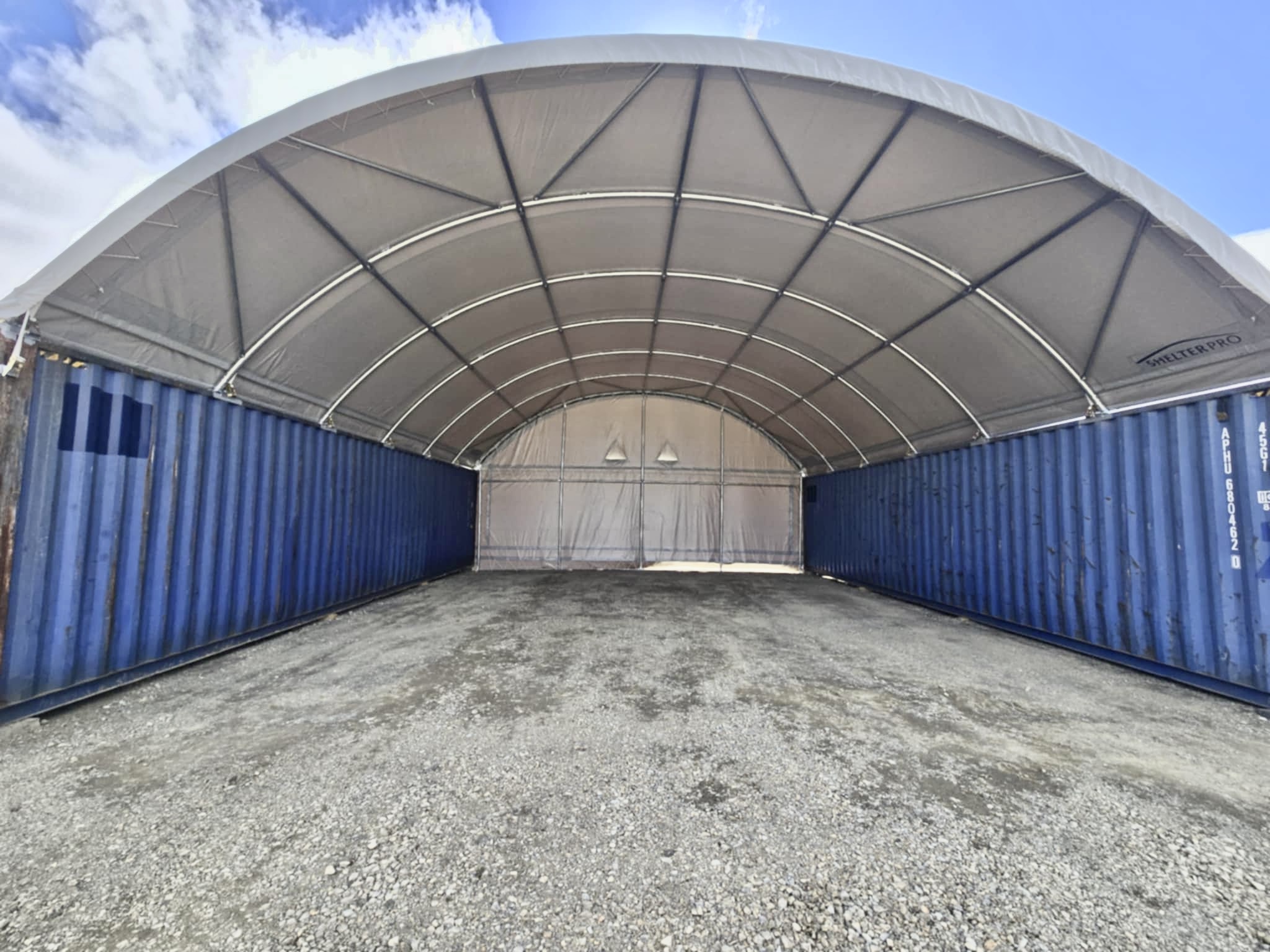

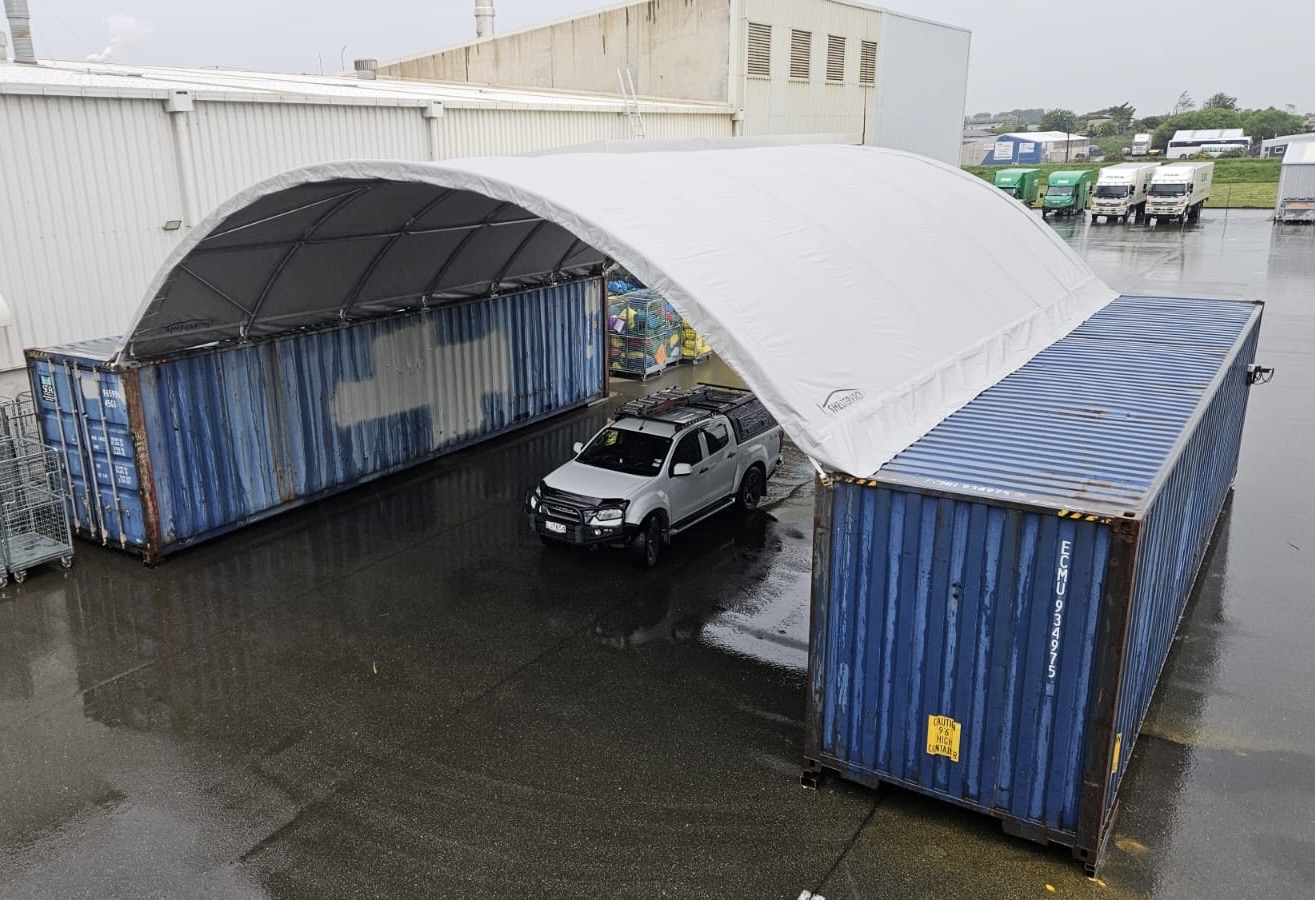

Designed for 40 foot containers set 10m apart our ShelterPro SP1040 container shelter offers 122m² of covered protection. The ShelterPro SP1040 frame has 7 arches, and 5 purlins made of super strong, hot dipped galvanised, rolled structural steel. We match these frames with our hard-wearing, UV stabilised, waterproof, fire retardant 610gsm PVC covers.

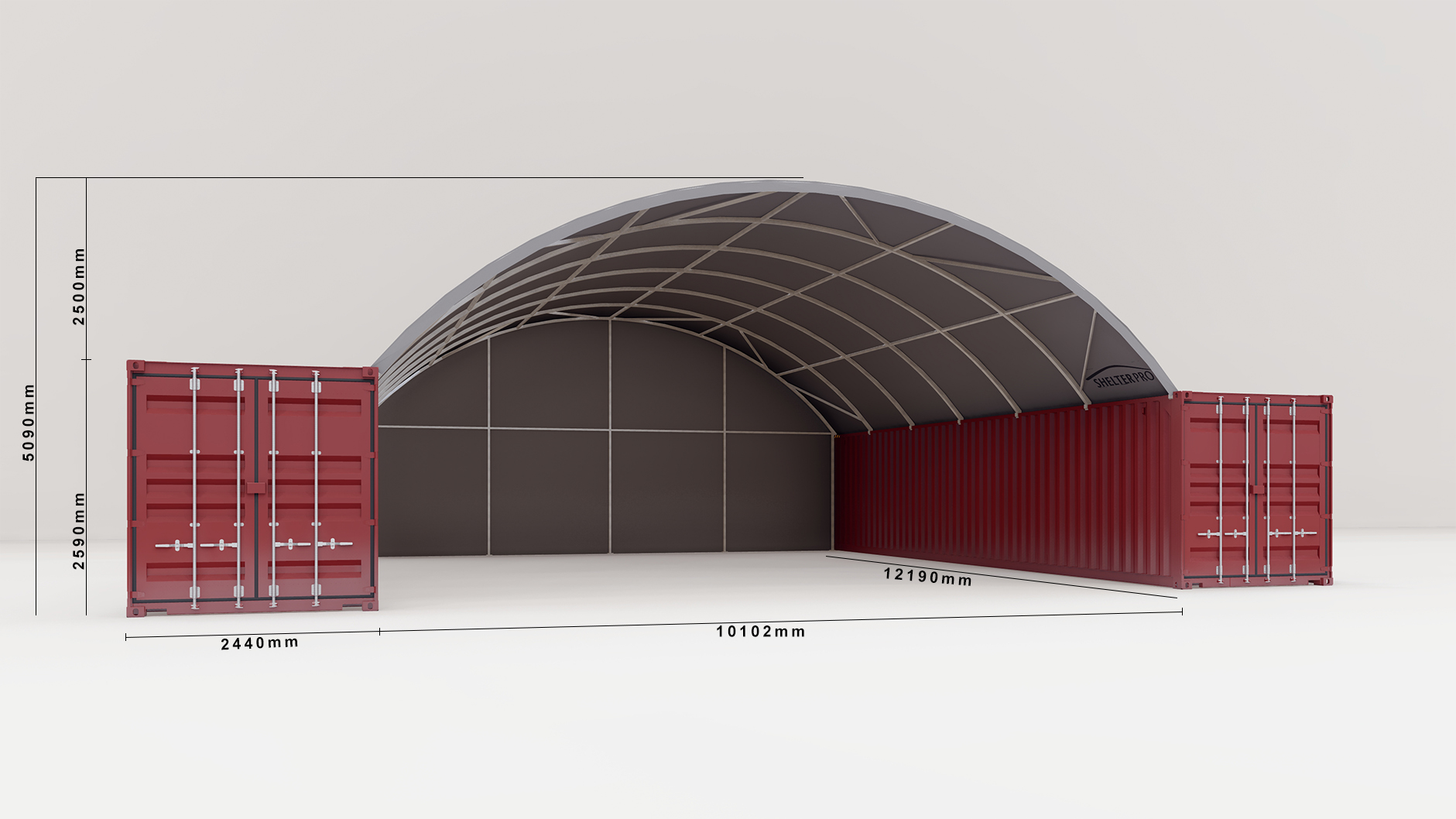

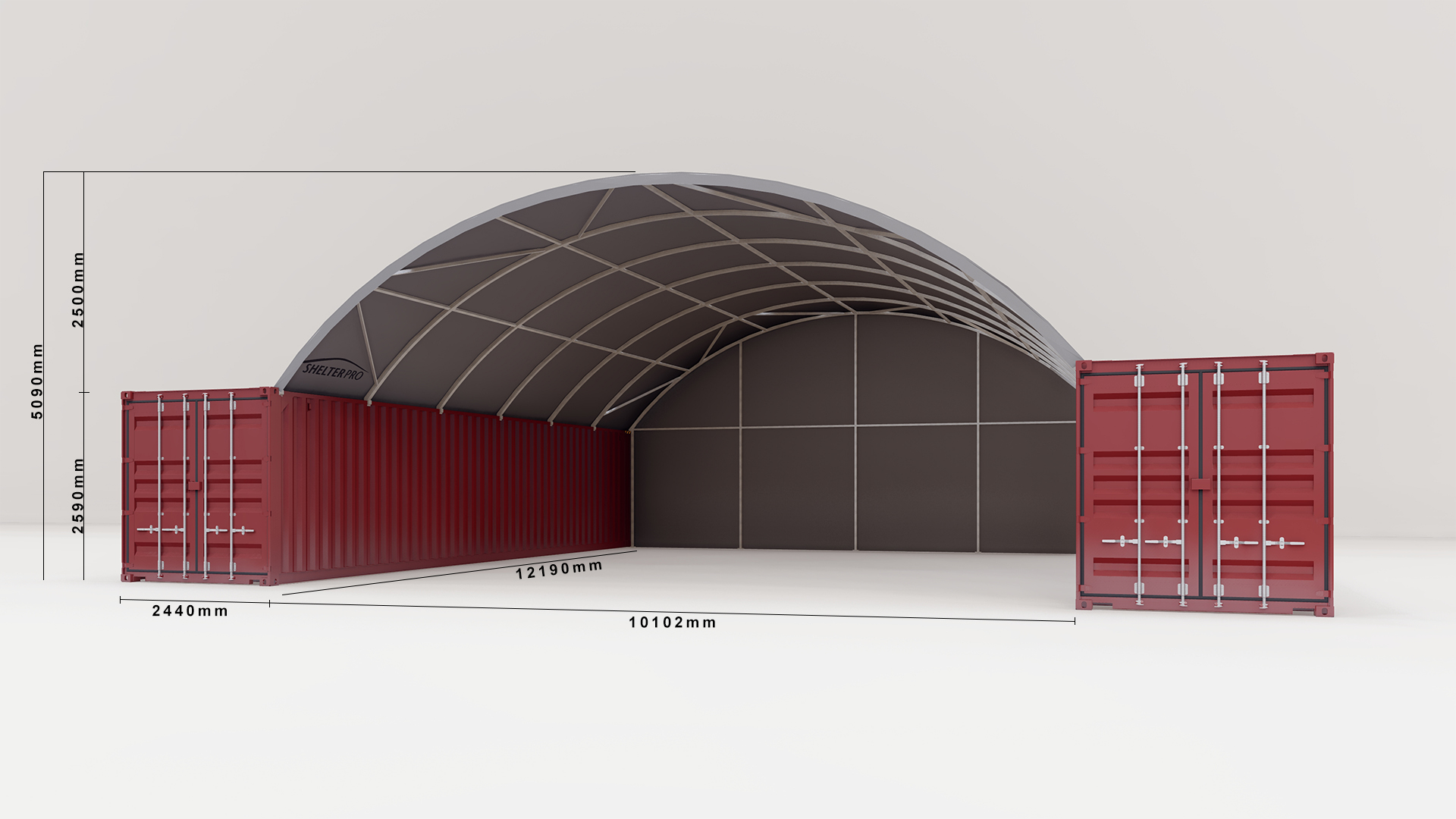

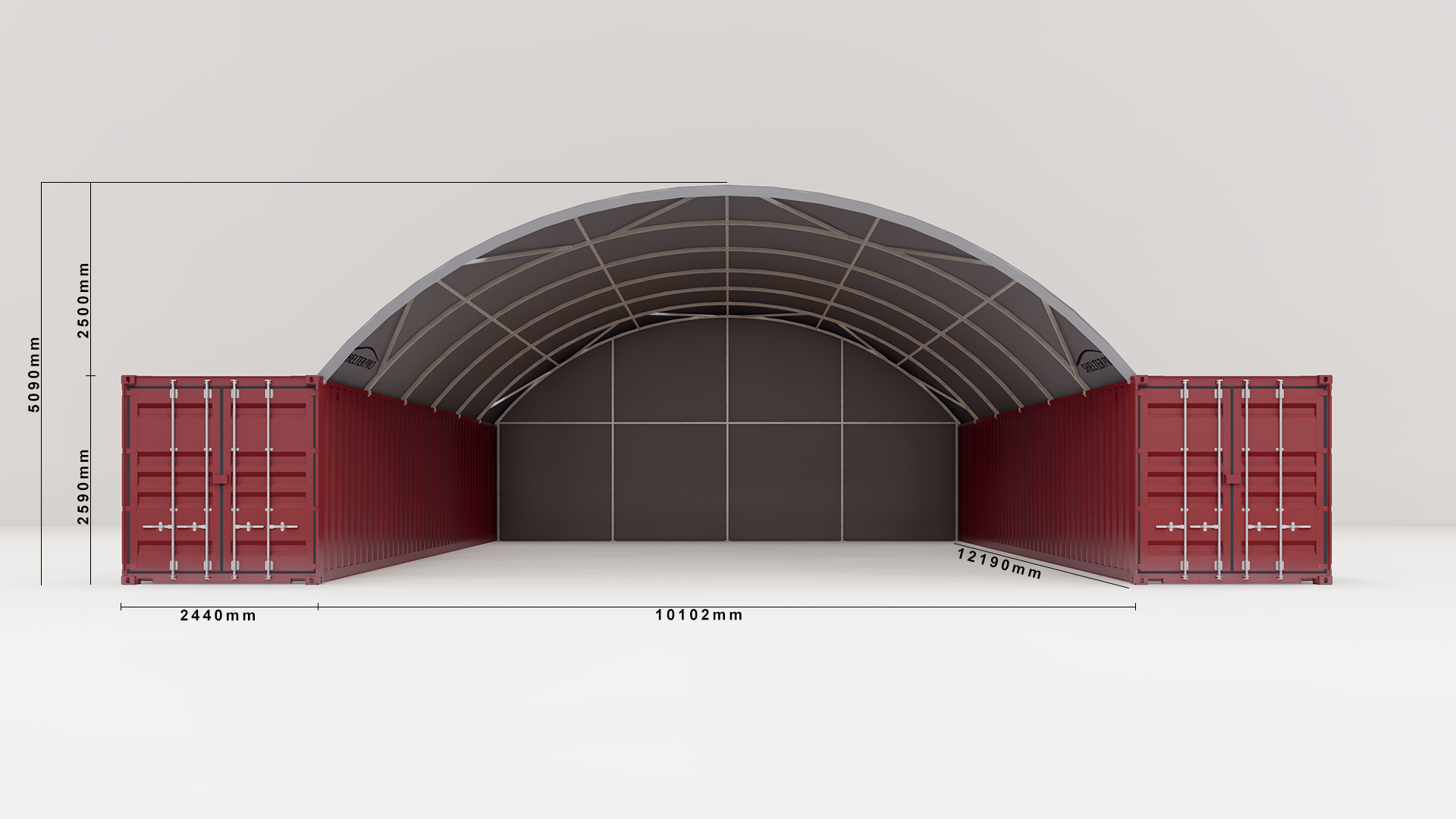

The SP1040 shelter has an arch height of 2.5m from container tops or mounting point to apex. This makes for a total height of 5.09m on GP containers or 5.39m on HC containers.

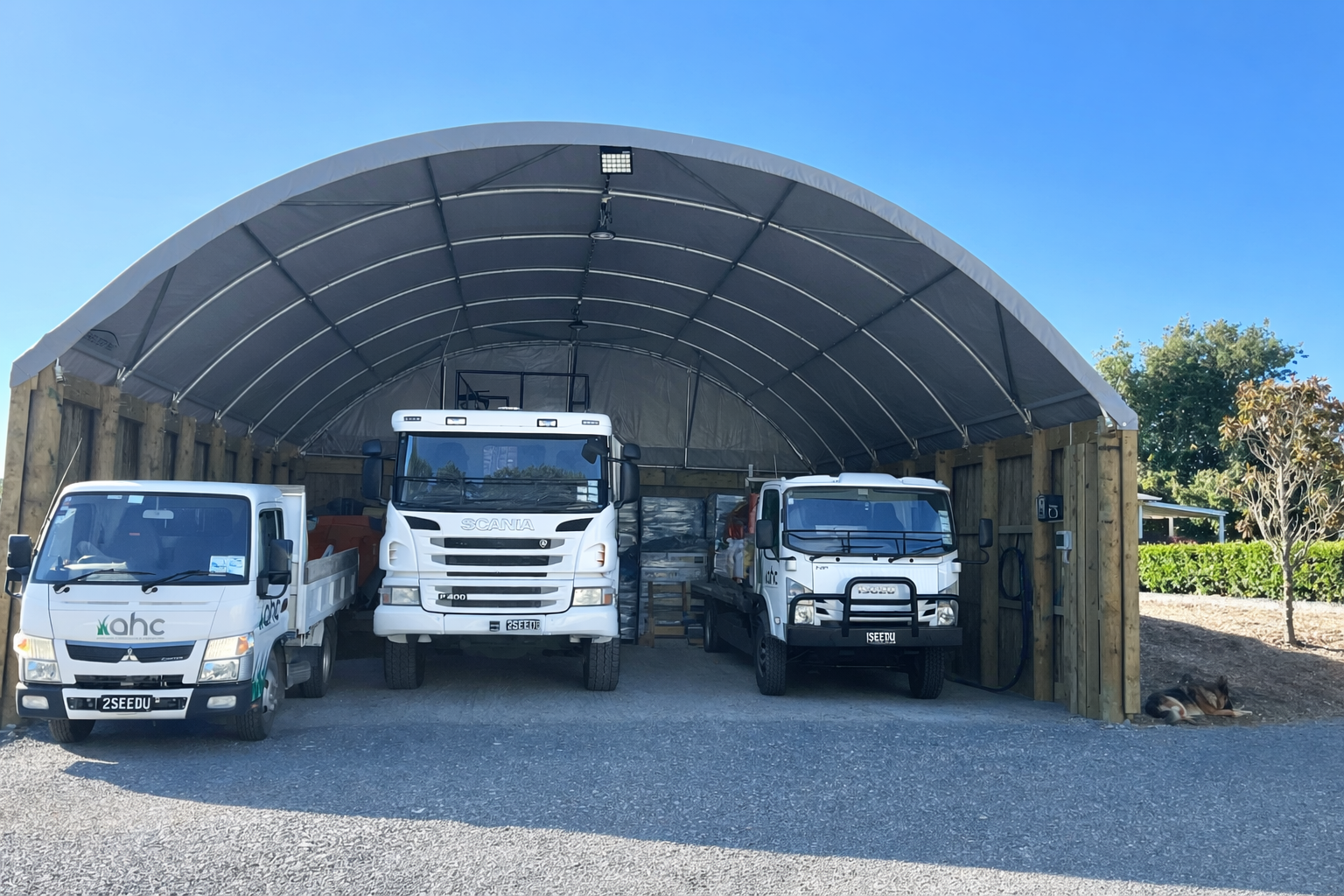

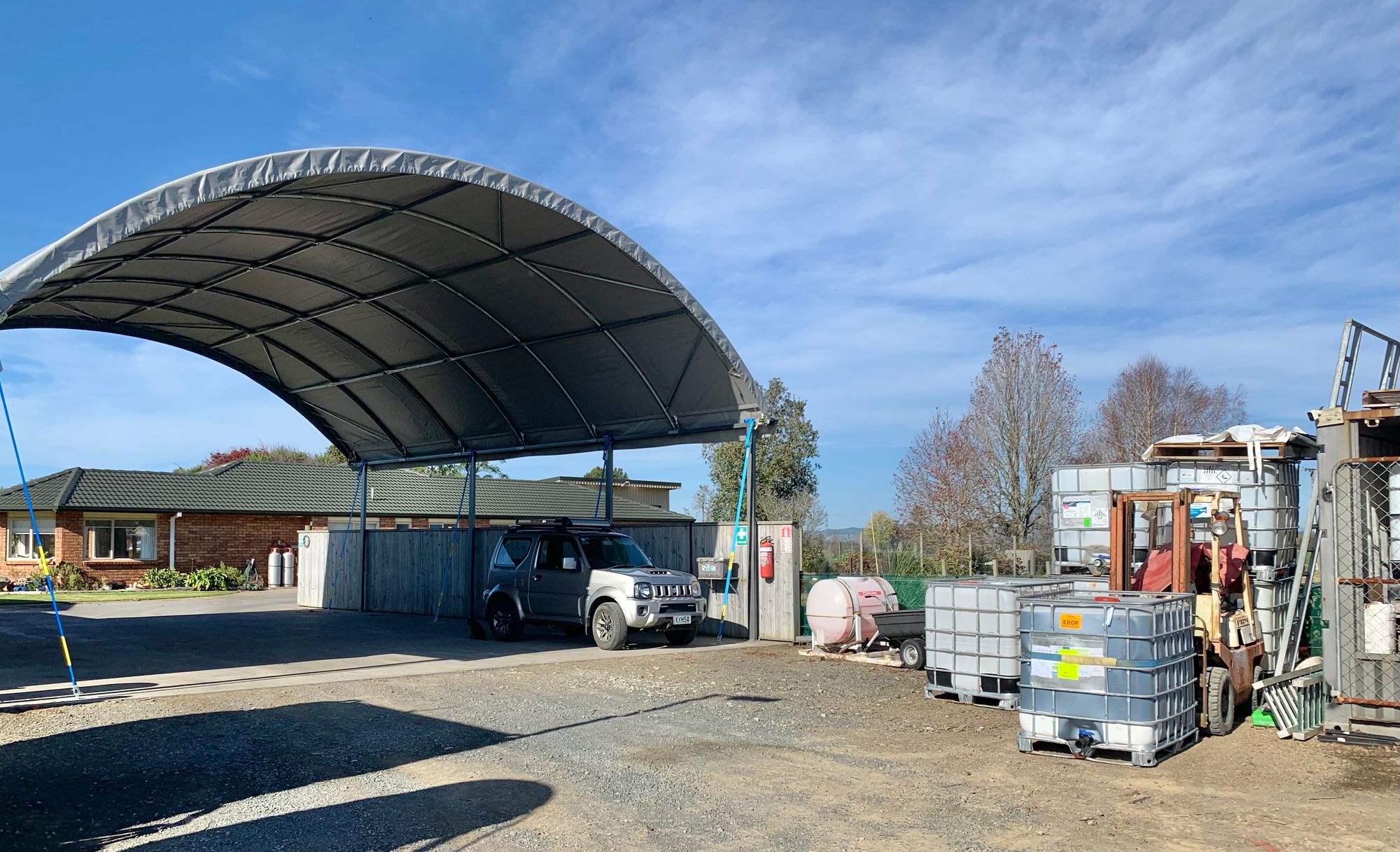

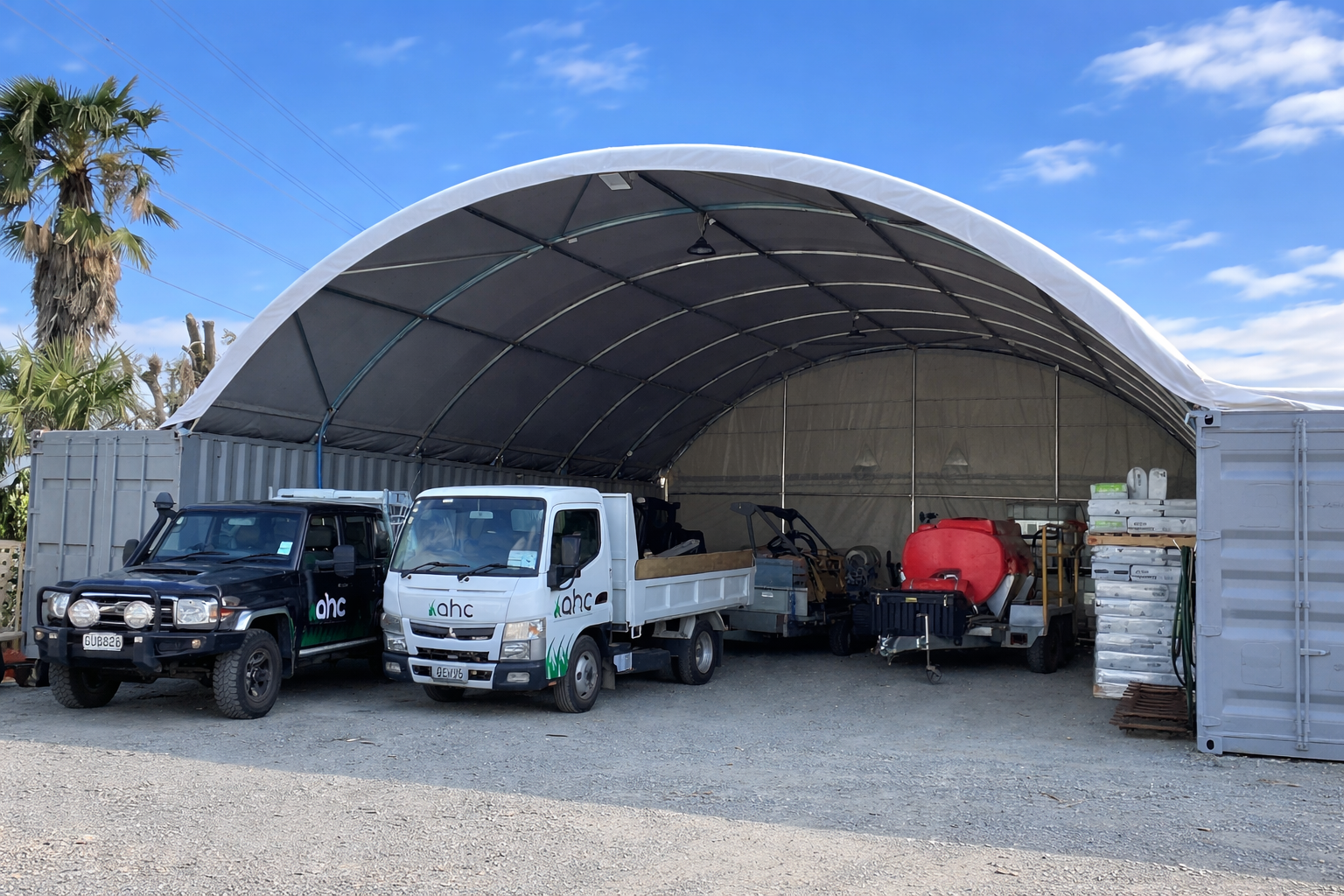

All ShelterPro container shelters can be mounted to a variety of options including concrete blocks, walls and posts/poles.

Dimensions: 10 m W x 12.2 m D x 2.5 m H

Floor Area: 123.11 m²

Number of Arches: 7

Number of Purlins: 5

Packaged Weight: 957 kg

Packaged Dimensions : 2.70 m x 1.1 m x 0.90 m

Frame: Hot dip galvanised, Q235 structural steel

Cover: 610gsm PVC, UV stabilised, waterproof & fire retardant

SHELTER FEATURES

• Hot dipped galvanised structural steel frame
• UV stabilised, fire retardant, 610gsm PVC cover
• Waterproof PVC cover

Shipped from our centrally located warehouse, we have shipping solutions available nationwide. Free pickup available from our Tauranga warehouse by arrangement. All ShelterPro container shelters are shipped in safe, sturdy shipping crates to protect your new container shelter while in transport.
